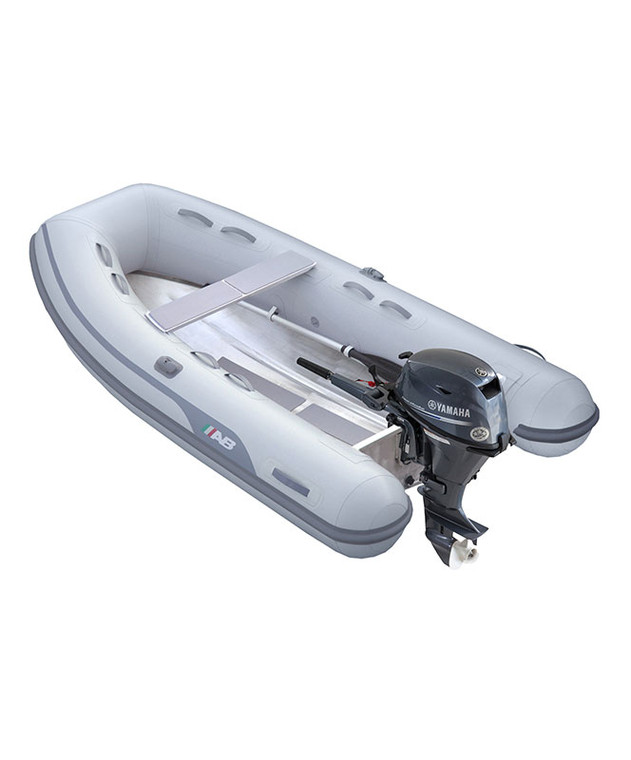

AB Inflatable 10' Lammina Ultralight w/ 8 hp Yamaha F8SMHB Motor

SKU:
ABI-10ULT-GY-8HP
|
MPN
10ULT-GY-8HP
Our Price: $7,999.99
Current Stock:
1
Adding to cart… The item has been added
AB Inflatable 10' Lammina Ultralight w/ 8 hp Yamaha F8SMHB Motor.

Please note that Inflatables are NON-returnable - Please contact before purchasing with any questions

Boat Features:
  • Large Square Transom Alum. Reinforced Base

  • More Payload capacity

  • Ultra High Quality Welding

  • Reinforced Aluminum Bow Eye with SS Rings

  • Reinforced Aluminum Lifting Eyes with SS Rings

  • Aluminum Removable Rowing Seat

  • 820 ORCA (CSM) Coated Fabric

  • Internal Aluminum Plate with Security Lip

  • Optional Chrome Free - Advanced Pretreatment and Powder Coating Technology

  • SEADEK Eva Foam Non-Skid Floor


    • Boat Specifications:
  • Overall Length: 10' / 3.05m

  • Overall Beam: 5' 6" / 1.68m

  • Inside Length: 7' 2"/2.18m

  • Inside Beam: 2' 8"/ 0.81m

  • Tube Diameter: 17" / 0.43m

  • Number of Chambers: 3

  • Person Capacity: 5

  • Weight: 94lb / 43kg

  • RDC Design Category: C

  • Aluminum Hull Thickness: 0.125 in / 3.18 mm

  • Aluminum Transom Thickness: 0.125 in / 3.18 mm


    • Engine Specifications:
  • HP: 8 / 212-cc

  • Weight: 87 lbs (39 kg )

  • Full Throttle RPM Range:5000 ~ 6000

  • Fuel Induction System: Carb

  • Recommended Engine Oil: Yamalube 4M

  • Engine Type: 2 cyl

  • Displacement: 212cc

  • Bore x Stroke: 56 x 43mm (2.20 x 1.70 in.)

  • Prop Shaft Horsepower: 8hp at 5500 rpm

  • Alternator Output at W.O.T.: 6 Amp

  • Compression Ratio: 9.4:1

  • Recommended Fuel: Octane 87

  • Recommended Fuel Filtration: Yamaha 10-Micron Fuel/Water Separating Filter (external)

  • C.A.R.B. Rating: 3-Star

  • Exhaust: Through Propeller

  • Intake: 4

  • Ignition: CDI Microcomputer

  • Spark Plug: BR6HS-10

  • Starting System: Manual

  • Lubrication: Wet Sump

  • Engine Oil Capacity: 0.8L

  • Recommended Cooling: Thermostatic Control

  • Ethanol Blend Limit: 10% Maximum

  • Gear Ratio: 2.08:1

  • Gear Shift: Forward, Neutral, Reverse

  • Shaft Length: 15"

  • Degree of Tilt: 71°

  • Degree of Trim: -4° through +16°

  • :Steering: Tiller:

  • Steering Angle (maximum): 43° from center, either direction
    • Manuals and Instructions Chock & Davit Information | Accessories & Part Numbers
    Brand AB Inflatable
    Cross Reference / Specs

    USE WITH:
  • F8SMHB - 8 HP Yamaha Outboard
    		•
