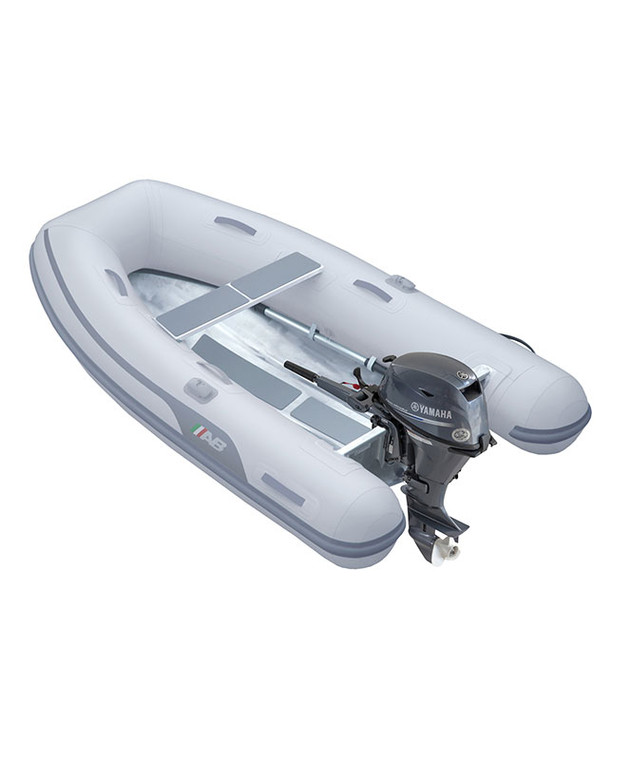

AB Inflatable 8' Lammina Ultralight w/ 4 hp Yamaha F4SMHA Motor.

Please note that Inflatables are NON-returnable - Please contact before purchasing with any questions

Boat Features:
  • Large Square Transom Alum. Reinforced Base

  • More Payload capacity

  • Ultra High Quality Welding

  • Reinforced Aluminum Bow Eye with SS Rings

  • Reinforced Aluminum Lifting Eyes with SS Rings

  • Aluminum Removable Rowing Seat

  • 820 ORCA (CSM) Coated Fabric

  • Internal Aluminum Plate with Security Lip

  • Optional Chrome Free - Advanced Pretreatment and Powder Coating Technology

  • SEADEK Eva Foam Non-Skid Floor


    • Boat Specifications:
  • Overall Length: 8' 5" / 2.56m

  • Overall Beam: 4' 11" / 1.50m

  • Inside Length: 5' 10" / 1.79m

  • Inside Beam: 2' 2" / 0.66m

  • Tube Diameter: 15" / 0.37m

  • Number of Chambers: 2

  • Person Capacity: 4

  • Weight: 77lb / 35kg

  • RDC Design Category: C

  • Aluminum Hull Thickness: 0.125 in / 3.18 mm

  • Aluminum Transom Thickness: 0.125 in / 3.18 mm


    • Engine Specifications:
  • HP: 4 / 139-cc

  • Weight: 60 lbs (27 kg )

  • Full Throttle RPM Range:4000 ~ 5000

  • Fuel Induction System: Carb

  • Recommended Engine Oil: Yamalube 4M

  • Engine Type: 1 cyl

  • Displacement: 139cc

  • Bore x Stroke: 62 x 46mm (2.44 x 1.81in)

  • Prop Shaft Horsepower: 4hp at 4500 rpm

  • Alternator Output at W.O.T.: 6 Amp

  • Compression Ratio: 8.9:1

  • Recommended Fuel: Octane 87

  • Recommended Fuel Filtration: N/A

  • C.A.R.B. Rating: 3-Star

  • Exhaust: Above Propeller

  • Intake: 2

  • Ignition: CDI

  • Spark Plug: CR6HSB

  • Starting System: Manual

  • Lubrication: Wet Sump

  • Engine Oil Capacity: 0.6L

  • Recommended Cooling: Thermostatic Control

  • Ethanol Blend Limit: 10% Maximum

  • Gear Ratio: 2.08:1

  • Gear Shift: Forward, Neutral, Reverse

  • Shaft Length: 15"

  • Degree of Tilt: 69°

  • Degree of Trim: -4° through +16°

  • :Steering: Tiller:

  • Steering Angle (maximum): 90° from center, either direction
    • Manuals and Instructions Chock & Davit Information | Accessories & Part Numbers
    Brand AB Inflatable
    Cross Reference / Specs

    USE WITH:
  • F4SMHA - 4 HP Yamaha Outboard
    		•
