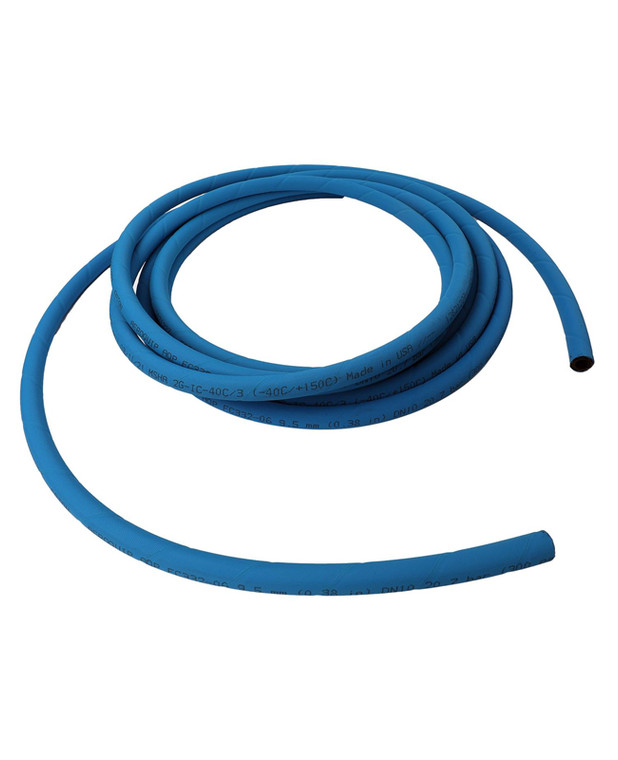

Aeroquip FC234-06 Engine Blue Fuel Hose and Tubing

SKU:
AEQFC234-6
|
MPN
FC234-6
|
UPC:
678146082428
Our Price: $16.95
Current Stock:
6
Adding to cart… The item has been added
Sold by Foot

This item is sold BY THE FOOT. Quantity equals ONE foot. i.e. Qty: 1 = 1', Qty: 5 = 5'. CUT HOSE/CHAIN IS NON-RETURNABLE

Aeroquip FC234-06 Engine Blue Fuel Hose and Tubing

Features:
  • Vacuum rating: 28 iHg

  • Construction: 2-ply braid

  • Tube Material: AQP Inner tube

  • Color: Blue

  • Conductivity: Conductive

  • Hose Size: 6

  • Abrasion Resistance: Standard

  • Working Temperature Min: -40 °F

  • Working Temperature Max: 302 °F

  • Working Pressure: 1500 Psi

  • Lay Line Style: Ink Jet

  • Outside Diameter: .7"

  • Reinforcement Material: Wire

  • Inside Diameter: .31"

  • Cover Material: Elastomer

  • Tube Wall Thickness: .37"

  • Bend Radius -Min: 1.25"

  • Burst Pressure: 6000 Psi

  • Conditional temperature Range: Use with biodiesel not to exceed 100 C [212 F] with B2 to B27

  • Qualified Hose Fittings: 100R5 FJ, 100R5 Reusable

  • Application: Hydraulic, crude fuel and lubricating oils, gasoline, water and phosphate-ester based hydraulic fluids


    • Brand Areoquip | Eaton
    Cross Reference / Specs

    USE WITH
  • 190111-5-6 - 5/16 Fitting
  • 190111-6 - 3/8" Fitting
  • 190235-5-6 - 5/16" Fitting
  • 190235-6 - 3/8" Fitting
    		•
