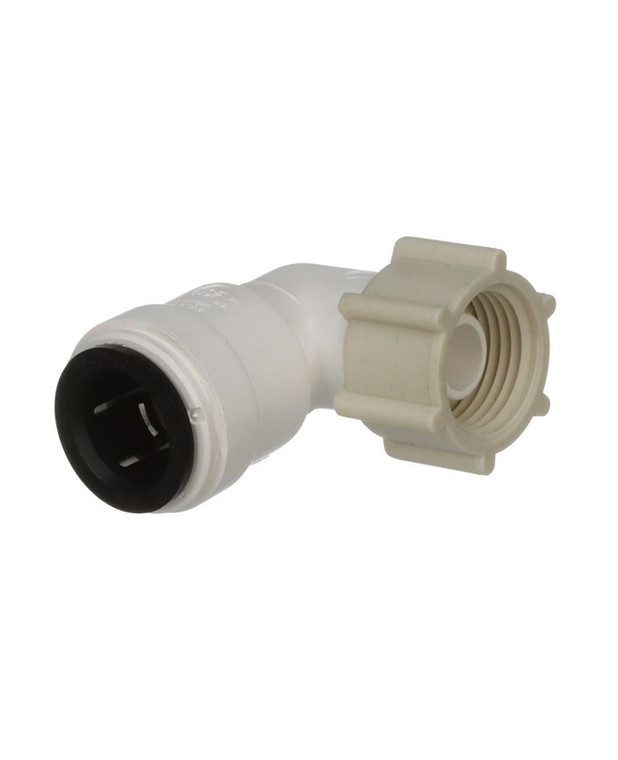

AquaLock 3520-1008 1/2" CTS x 1/2" NPS Plastic Female Swivel Elbow
AquaLock 3520-1008 1/2" CTS x 1/2" NPS Plastic Female Swivel Elbow
This 1/2 inch CTS x 1/2 inch NPS AquaLock™ plastic female swivel elbow works with copper, CPVC, PEX, and CTS rated pipe. It is easy to install, no tools or tube inserts are required. The fitting can be used for hot and cold water applications. The unique O-ring guide feature provides a zero-leak connection. Unlike barb fittings, this fitting joins the tubing on the outside, increasing the flow capacity. After a connection has been made even under maximum pressure, the tubing is able to swivel, making the fitting ideal for vibrating and dynamic applications.
Features:
Inlet Connection Size: 1/2"
Inlet Connection Type: Push to connect
Lead Free: YES
Maximum Working Pressure-BAR: 17.25
Maximum Working Pressure-PSI: 250
Maximum Working Temperature-Celsius; 24.00
Maximum Working Temperature-Fahrenheit: 75
Minimum Temperature - Celsius: 0.56
Minimum Temperature-Fahrenheit: 33
Outlet Connection Size: 1/2"
Outlet Connection Type: Female Threaded
Outlet Thread Type: NPSM
This 1/2 inch CTS x 1/2 inch NPS AquaLock™ plastic female swivel elbow works with copper, CPVC, PEX, and CTS rated pipe. It is easy to install, no tools or tube inserts are required. The fitting can be used for hot and cold water applications. The unique O-ring guide feature provides a zero-leak connection. Unlike barb fittings, this fitting joins the tubing on the outside, increasing the flow capacity. After a connection has been made even under maximum pressure, the tubing is able to swivel, making the fitting ideal for vibrating and dynamic applications.
Features:
| Brand | AquaLock |
|---|---|
| Cross Reference / Specs | SEATECH
WATTS |
