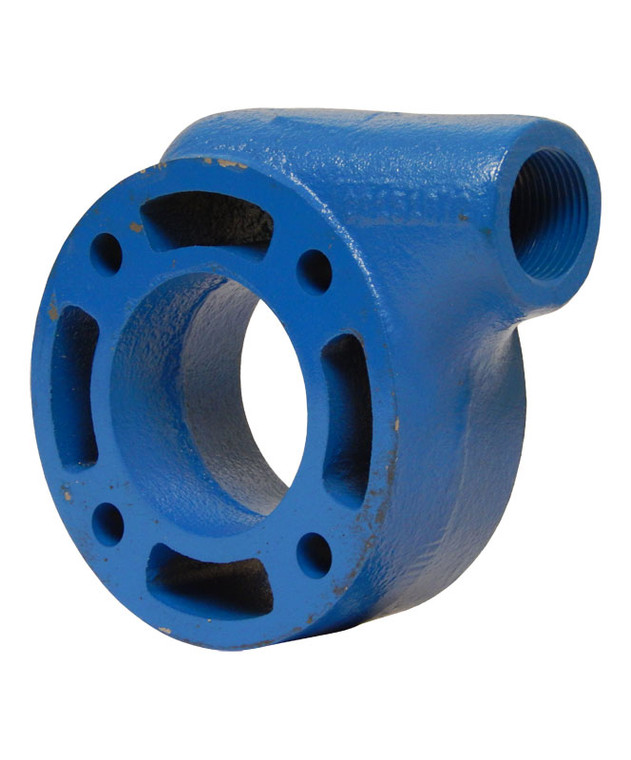

Barr Marine CR-20-97295 Water Outlet Adapter
Barr Marine CR-20-97295 Water Outlet Adapter.
This water outlet adapter is used on end riser type manifolds with fresh water cooling (FWC). On most applications, the adapter is placed against the manifold. On some applications that have been modified from original equipment, the spacer is located after the riser.
With either installation, you will need to order longer mounting studs:
CR-50-96369 -4" stud
CR-50-22032 -9-3/8" stud
CR-50-22033 -7-3/4" stud
Note: Barr Marine recommends that all gasket surfaces be cleaned of any paint before assembly.
This water outlet adapter is used on end riser type manifolds with fresh water cooling (FWC). On most applications, the adapter is placed against the manifold. On some applications that have been modified from original equipment, the spacer is located after the riser.
With either installation, you will need to order longer mounting studs:
Note: Barr Marine recommends that all gasket surfaces be cleaned of any paint before assembly.
| Manuals and Instructions | Crusader End Style Gasket Layout |
|---|---|
| Brand | Barr Marine |
| Cross Reference / Specs | CRUSADER
|
