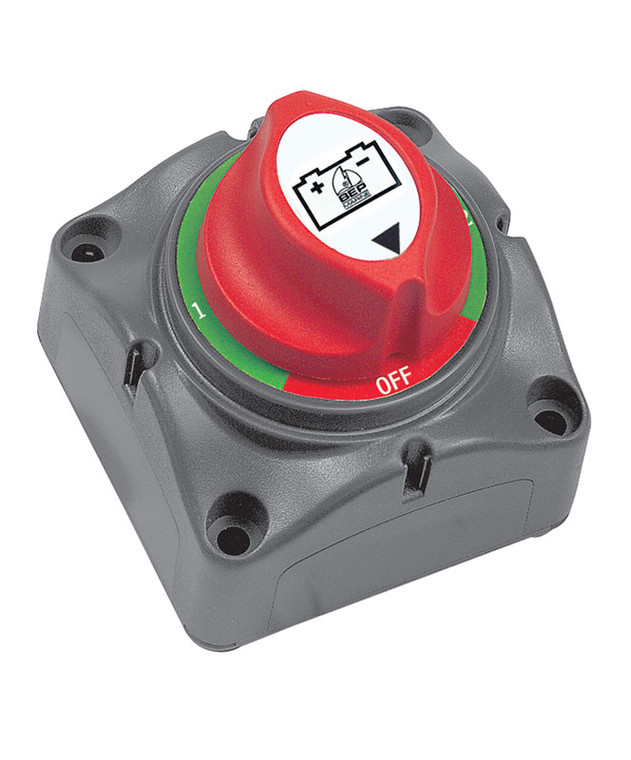

BEP Marine 701S Mini Battery Selector Switch
BEP Marine 701S Mini Battery Selector Switch
The 701S is the most compact selector switch available on the market. While BEP recommends isolated battery systems as outlined with our distribution clusters, the 701S provides a simple economical way of separating two batteries. BEP Marine Battery Switch Test Procedures (UL 1107) Continuous (1 hour), intermittent (5 minutes) and Cranking (engine starting - 10 seconds). The test is to determine the maximum current the switch can handle for the stated time, without the rear terminals exceeding 100 deg C (212 deg F) above the ambient temperature. The continuous and intermittent ratings are tested at 110 percent of specified ratings. All BEP switches are tested Independently to this specification by a 3rd party laboratory.
Features:
Housed in the same dimensions as the 701, and includes the same removable side plates and back cover
Please note selector switches will not separate electronics from harmful engine starting spikes
Tin-plated copper studs and nuts
Ignition-protected
DC Voltage: 48V
Stud Size: 3 x 5/16 in (2 x 8mm)
Continuous Rating 200
Intermittent Rating 300
Cranking Rating 1000
The 701S is the most compact selector switch available on the market. While BEP recommends isolated battery systems as outlined with our distribution clusters, the 701S provides a simple economical way of separating two batteries. BEP Marine Battery Switch Test Procedures (UL 1107) Continuous (1 hour), intermittent (5 minutes) and Cranking (engine starting - 10 seconds). The test is to determine the maximum current the switch can handle for the stated time, without the rear terminals exceeding 100 deg C (212 deg F) above the ambient temperature. The continuous and intermittent ratings are tested at 110 percent of specified ratings. All BEP switches are tested Independently to this specification by a 3rd party laboratory.
Features:
| Brand | BEP Marine |
|---|---|
| Cross Reference / Specs |
