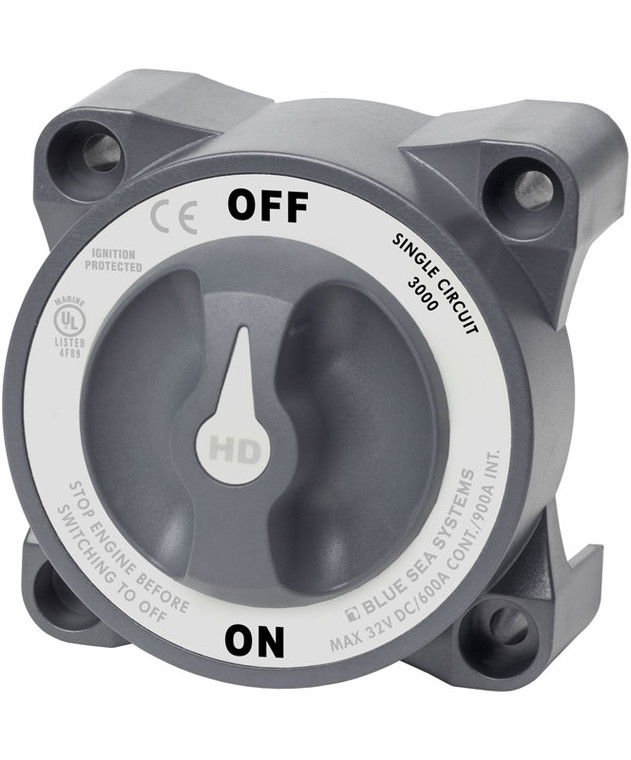

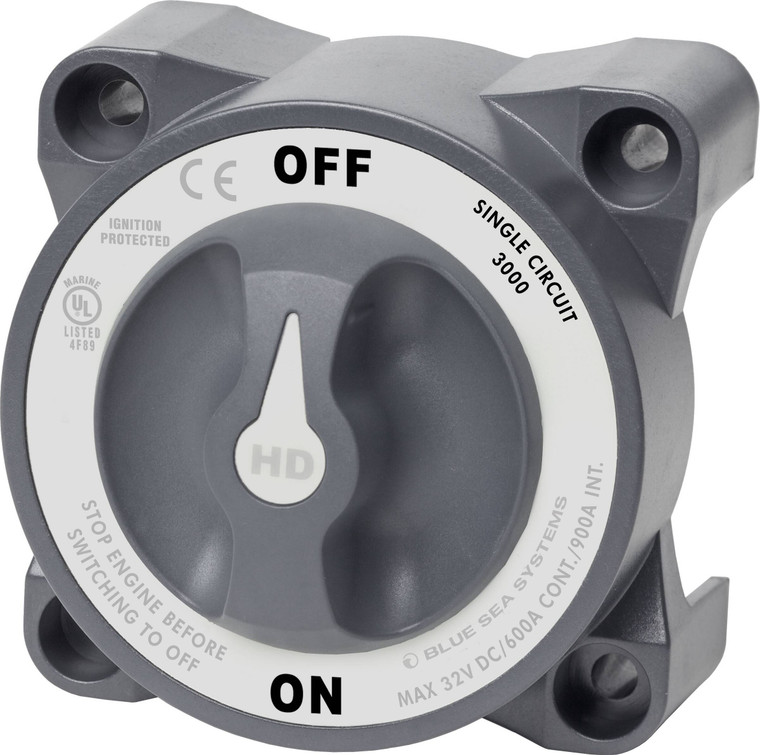

Blue Sea Systems 3000 HD-Series Heavy Duty On-Off Battery Switch

Blue Sea Systems 3000 HD-Series Heavy Duty On-Off Battery Switch

Heavy Duty On-Off Battery Switch, switches a single battery to a single load group.

FEATURES

Ignition protected—safe for installation aboard gasoline powered boats

Case design allows surface or rear panel mounting

Accepts two 4/0 AWG (95mm²) battery cables

Switch Type: Single Circuit ON-OFF

Color: Grey

Switch Positions: 2

Battery Combine: No

Alternator Field Disconnect: No

Maximum Voltage: 32V DC

Terminal Stud Torque: 220 in-lb (24.86 Nm)

Continuous Rating: 600A

Intermittent Rating: 900A (5 min)

Cranking Rating 30 sec: 1750A

Battery Inputs: 1

Cable Clearance For 4/0 AWG Cables: 1.10in (27.94 mm)

Cable Quantity to Meet Ratings: Two Cables

Cable Size to Meet Ratings: 4/0 AWG (120mm²)

Mounting Holes: Accept 1/4" (M6) Screw

Terminal Stud Size: 1/2" (M12)
