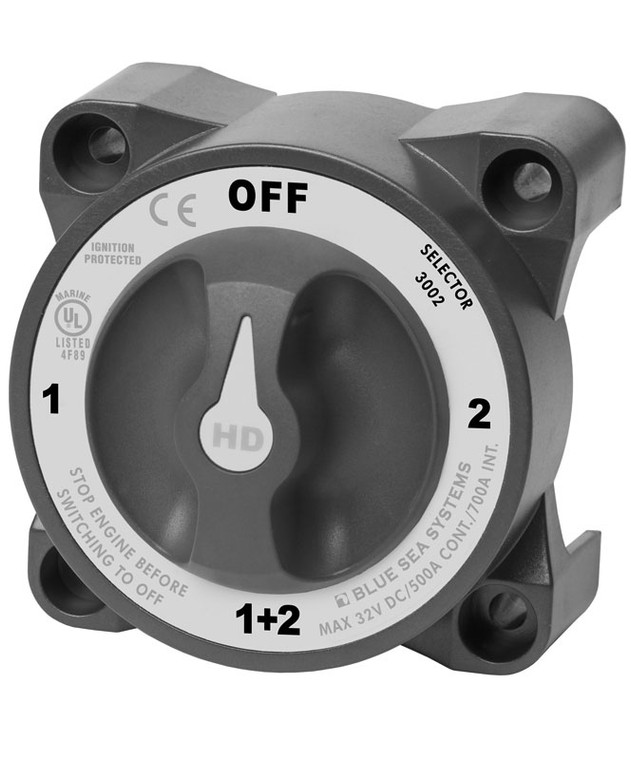

Blue Sea Systems 3002 HD-Series Heavy Duty Selector Battery Switch

SKU:
BLU3002
|
MPN
3002-BSS
|
UPC:
632085030025
Our Price: $100.59
Current Stock:
5
Adding to cart… The item has been added
Blue Sea Systems 3002 HD-Series Heavy Duty Selector Battery Switch.

Switches isolated battery banks to all loads or combines battery banks to all loads
  • Make-before-break contact design allows switching between battery banks without power interruption

  • Ignition protected—safe for installation aboard gasoline powered boats

  • Case design allows surface or rear panel mounting

  • Accepts two 4/0 AWG (95mm²) battery cables


    • Specifications:

  • Switch Type: Selector 4 Posistion

  • Color: Grey

  • Switch Positions: 4

  • Battery Combine: Yes

  • Alternator Field Disconnect: No

  • Maximum Voltage: 32V DC

  • Continuous Rating: 500A

  • Intermittent Rating: 700A (5 min)

  • Cranking rating 10 sec: 2750A

  • Cranking Rating 1 min: 1150A

  • Battery Inputs: 2

  • Cable Clearance For 4/0 AWG Cables: 1.10in (27.94 mm)

  • Cable Quantity to Meet Ratings: Two Cables / Terminal

  • Cable Size to Meet Ratings: 4/0 AWG (120mm²)

  • Mounting Holes: Accept: 1/4" (M6) Screw

  • Terminal Stud Size: 1/2" (M12)

  • Terminal Stud Torque: 220 in-lb (24.86 Nm)

  • Weight: 1.25lb (0.57 kg)



    • Brand Blue Sea Systems
