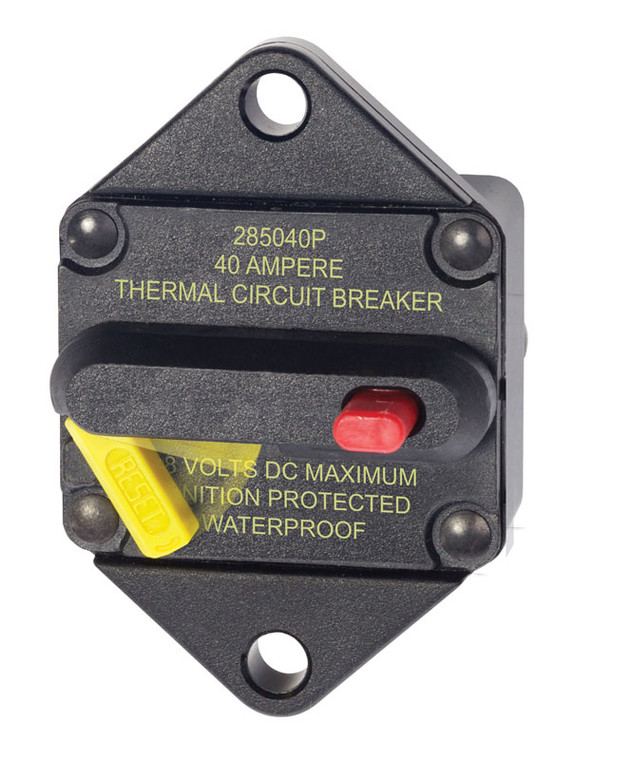

Blue Sea Systems 7082 Series 285 Circuit Breaker - Panel Mount 40A

SKU:
BLU7082
|
MPN
7082-BSS
|
UPC:
632085070823
Our Price: $54.29
Current Stock:
2
Adding to cart… The item has been added
Blue Sea Systems 7084 Series 285 Circuit Breaker - Panel Mount 40A.

  • Drop in replacement for 185-Series Circuit Breakers

  • Visible reset lever shows open condition

  • Ignition protected - Safe for installation aboard gasoline powered boats

  • Meets SAE J1171 external ignition protection requirements

  • Weather Resistant

  • Combines switching and circuit breaker function into one unit*

  • "Trip Free" - cannot be held closed after trip


    • * Do not use as a switch where high inrush currents are expected.

    Specifications:
  • Amperage: 40A

  • Maximum Voltage: 48V DC

  • Mounting: Panel Mount

  • Circuit Breaker Type: Thermally responsive Bi-metal blade

  • Interrupt Capacity: 3000A @ 48V

  • Minimum Operating Temperature: -40° C

  • Maximum Operating Temperature: 85° C

  • Circuit Breaker Class: Type III - switchable/manual reset - trip free

  • Terminal Stud: M6 (accepts 1/4" Ring Terminal)

  • Terminal Stud Torque: 50 in-lb (5.65 Nm)

  • Weight: 0.50lb (0.23 kg)
    • Brand Blue Sea Systems
    Cross Reference / Specs BLU7005 7005
