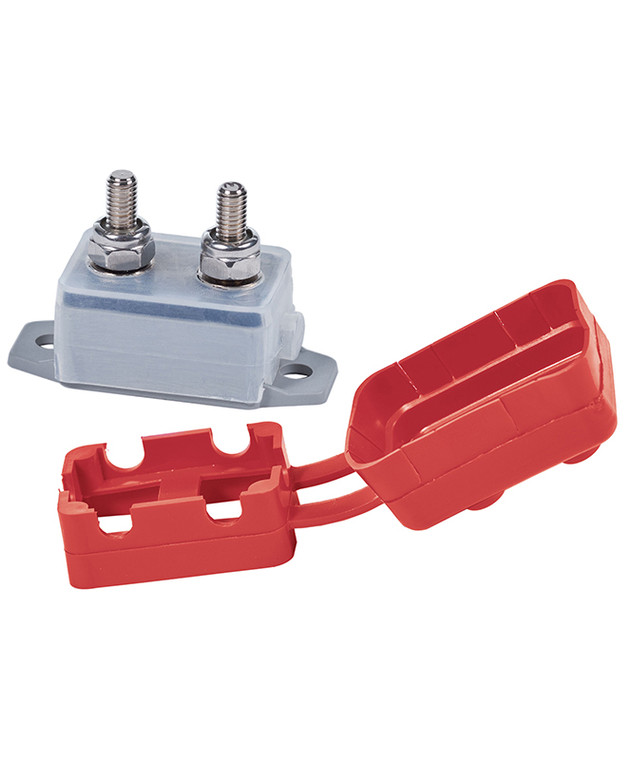

Blue Sea Systems 7154 Marine Grade Short Stop Circuit Breakers - 25A
Blue Sea Systems 7154 Marine Grade Short Stop Circuit Breakers - 25A.
Use a Circuit Breaker instead of a Fuse.
Features:
Amperage: 25A DC
Maximum Voltage: 28V DC
Circuit Breaker Type: Thermal trip, manual reset
Terminal Stud: #10-32
Terminal Stud Torque: 24 in-lb (2.71 Nm)
Interrupt Capacity: 2500A @ 28V DC
Minimum Operating Temperature: -10° C
Maximum Operating Temperature: 60° C
Corrosion resistant materials to withstand harsh environments
IP64 water resistant boot protects against dust and splashing water
Push-to-reset operation only disconnects when tripped
Stainless steel lock nuts for secure connections
7160 - Red insulating boot included
Use a Circuit Breaker instead of a Fuse.
Features:
| Brand | Blue Sea Systems |
|---|---|
| Cross Reference / Specs | USE WITH: |
