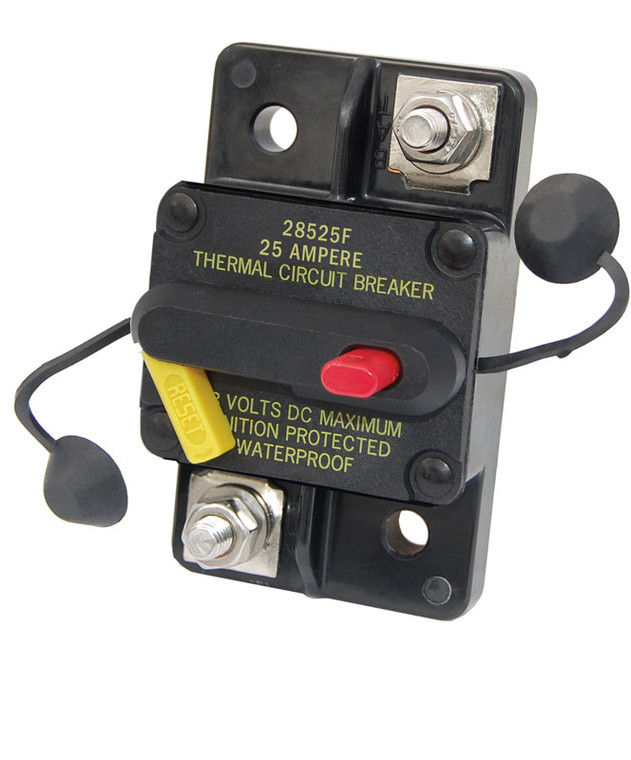

Blue Sea Systems 7180 Series 285 Circuit Breaker - Surface Mount 25A

Blue Sea Systems 7180 Series 285 Circuit Breaker - Surface Mount 25A.

Drop in replacement for 185-Series Circuit Breakers

Visible reset lever shows open condition

Ignition protected - Safe for installation aboard gasoline powered boats

Meets SAE J1171 external ignition protection requirements

Weather Resistant

Combines switching and circuit breaker function into one unit*

"Trip Free" - cannot be held closed after trip

* Do not use as a switch where high inrush currents are expected.

Specifications:

Amperage: 25A

Maximum Voltage: 48V DC

Mounting: Panel Mount

Circuit Breaker Type: Thermally responsive Bi-metal blade

Interrupt Capacity: 3000A @ 48V

Minimum Operating Temperature: -40° C

Maximum Operating Temperature: 85° C

Circuit Breaker Class: Type III - switchable/manual reset - trip free

Terminal Stud: M6 (accepts 1/4" Ring Terminal)

Terminal Stud Torque: 60 in-lb (6.78 Nm)

Weight: 0.50lb (0.23 kg)
