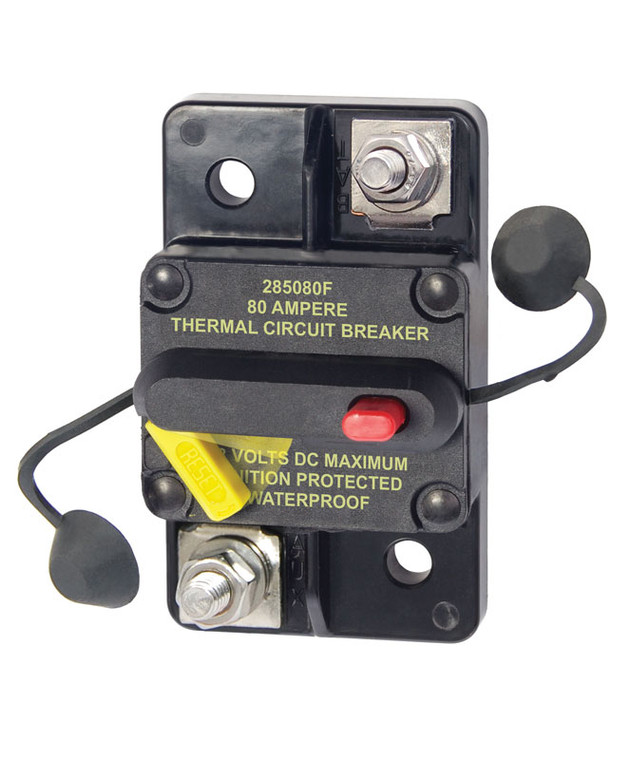

Blue Sea Systems 7186 Series 285 Circuit Breaker - Surface Mount 80A

SKU:
BLU7186
|
MPN
7186-BSS
|
UPC:
632085071868
Our Price: $54.29

Current Stock:
Enter your email address to be notified when this item is back in stock.

This product is out of stock

Out of Stock
Blue Sea Systems 7186 Series 285 Circuit Breaker - Surface Mount 80A.

  • Drop in replacement for 185-Series Circuit Breakers

  • Visible reset lever shows open condition

  • Ignition protected - Safe for installation aboard gasoline powered boats

  • Meets SAE J1171 external ignition protection requirements

  • Weather Resistant

  • Combines switching and circuit breaker function into one unit*

  • "Trip Free" - cannot be held closed after trip


  • * Do not use as a switch where high inrush currents are expected.

    Specifications:
  • Amperage: 80A

  • Maximum Voltage: 48V DC

  • Mounting: Panel Mount

  • Circuit Breaker Type: Thermally responsive Bi-metal blade

  • Interrupt Capacity: 3000A @ 48V

  • Minimum Operating Temperature: -40° C

  • Maximum Operating Temperature: 85° C

  • Circuit Breaker Class: Type III - switchable/manual reset - trip free

  • Terminal Stud: M6 (accepts 1/4" Ring Terminal)

  • Terminal Stud Torque: 60 in-lb (6.78 Nm)

  • Weight: 0.50lb (0.23 kg)
  • Brand Blue Sea Systems
