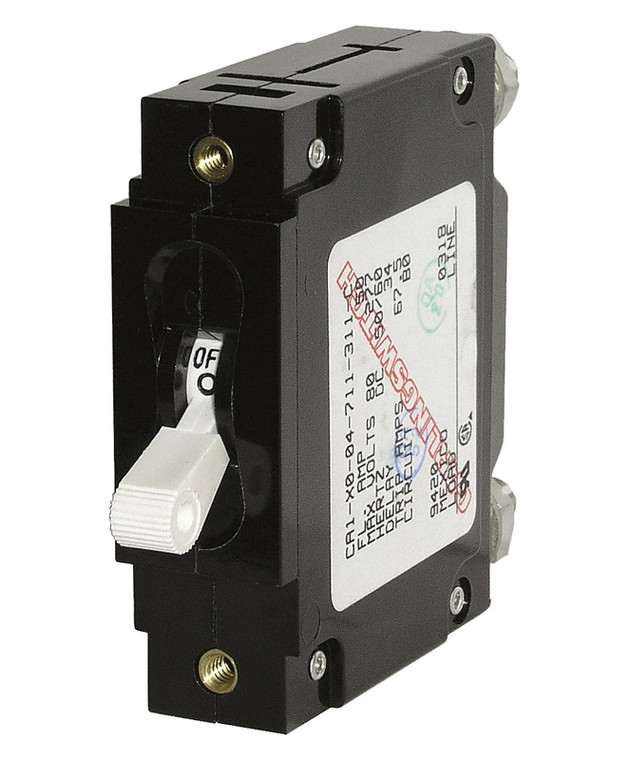

Blue Sea Systems 7244 C-Series White Toggle Circuit Breaker - Single Pole 50 Amp

SKU:
BLU7244
|
MPN
7244-BSS
|
UPC:
632085072445
Our Price: $43.99
Current Stock:
4
Adding to cart… The item has been added
Blue Sea Systems 7244 C-Series White Toggle Circuit Breaker - Single Pole 50 Amp.

Features:
  • Amperage: 50A AC, 50A DC

  • Color: White

  • Actuator Style: Toggle

  • Poles: 1

  • Maximum Voltage: 240V AC, 80V DC

  • Circuit Breaker Type: Magnetic Hydraulic - trip free

  • Terminal Stud Torque: 35 in-lb (3.95 Nm)

  • Interrupt Capacity: 5000A @ 125V AC, 5000A @ 240V AC, 10000A @ 80V DC

  • Minimum Operating Temperature: -40° C

  • Maximum Operating Temperature: 85° C

  • Mounting Screw: #6-32 Stainless Steel

  • Mounting Screw Torque: 6 in-lb (0.68 Nm)

  • Switching Cycles: 10000

  • Terminal Stud: 1/4-20 Tin-Plated Brass

  • Weight: 0.36lb (0.16 kg)

  • Provides overcurrent protection for inverters, bow thrusters, and windlasses

  • Combines switching and circuit protection into a single device

  • "Trip Free"—cannot be held closed after trip
    • Brand Blue Sea Systems
