Blue Sea Systems 7353 C-Series White Toggle Circuit Breaker - Single Pole 20 Amp

SKU:
BLU7353
|
MPN
7353-BSS
|
UPC:
632085073534
Our Price: $43.99
Current Stock:
5
Adding to cart… The item has been added

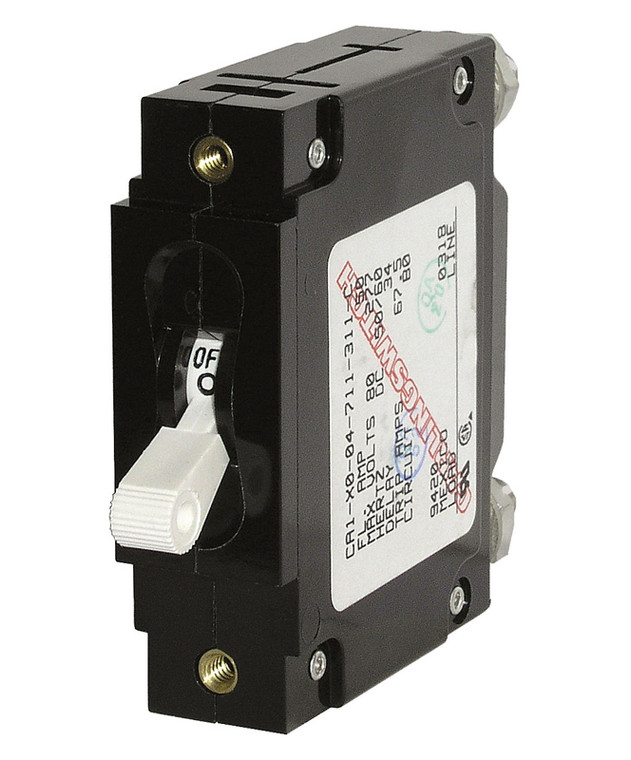

Blue Sea Systems 7353 C-Series White Toggle Circuit Breaker - Single Pole 20 Amp.

Features:
  • Amperage: 20A AC, 20A DC

  • Color: White

  • Actuator Style: Toggle

  • Poles: 1

  • Maximum Voltage: 240V AC, 80V DC

  • Circuit Breaker Type: Magnetic Hydraulic - trip free

  • Terminal Stud Torque: 35 in-lb (3.95 Nm)

  • Interrupt Capacity: 5000A @ 125V AC, 5000A @ 240V AC, 10000A @ 80V DC

  • Minimum Operating Temperature: -40° C

  • Maximum Operating Temperature: 85° C

  • Mounting Screw: #6-32 Stainless Steel

  • Mounting Screw Torque: 6 in-lb (0.68 Nm)

  • Switching Cycles: 10000

  • Terminal Stud: 1/4-20 Tin-Plated Brass

  • Weight: 0.36lb (0.16 kg)

  • Provides overcurrent protection for inverters, bow thrusters, and windlasses

  • Combines switching and circuit protection into a single device

  • "Trip Free"—cannot be held closed after trip
    • Brand Blue Sea Systems
    Cross Reference / Specs

  • Amperage: 20A AC - 20A DC
  • Color: White
  • Actuator Style: Toggle
  • Poles: 1
  • Maximum Voltage: 250V AC - 80V DC
  • Circuit Breaker Type: Magnetic Hydraulic - trip free
  • Terminal Stud Torque: 35 in-lb (3.95 Nm)
  • Interrupt Capacity The fault current that a device, normally a fuse or circuit breaker is capable of breaking without damage: 5000A @ 125V AC - 5000A @ 250V AC - 10000A @ 80V DC
  • Minimum Operating Temperature: -40° C
  • Maximum Operating Temperature: 85° C
  • Mounting Screw: #6-32 Stainless Steel
  • Mounting Screw Torque: 6 in-lb (0.68 Nm)
  • Switching Cycles: 10000
  • Terminal Stud: 1/4-20 Tin-Plated Brass
  • Weight: 0.25lb (0.11 kg)
    		•
