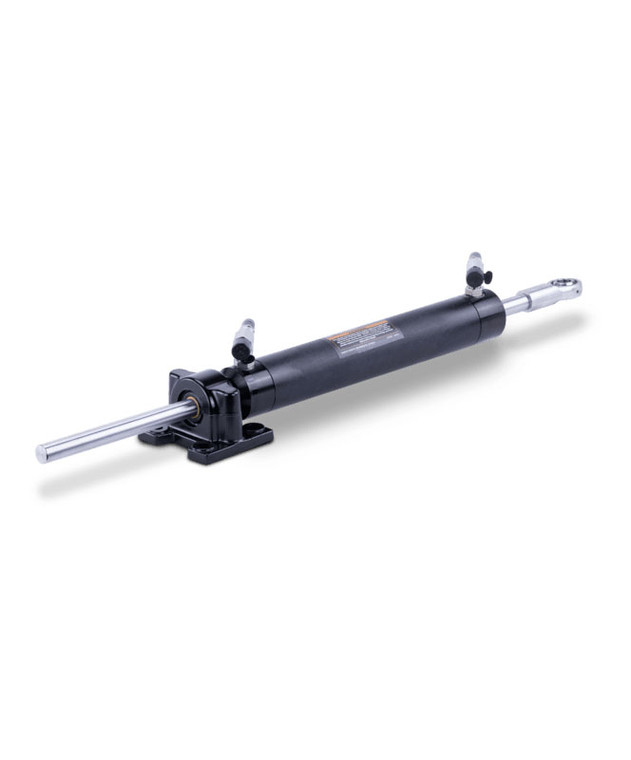

Dometic HC5313-3 SeaStar Inboard Cylinder
Dometic HC5313-3 SeaStar Inboard Cylinder.
SeaStar inboard marine hydraulic steering cylinders are designed for single and dual rudder vessels with two axis articulation and easy autopilot interface. Manufactured with regular marine duty aluminum, these cylinders have a wide range of boat steering applications.
Cylinder fits planning hull boats with one engine (Pleasure) up to 32' and planning hull boats with two engines (Pleasure) up to 38'. Also fits displacement hull boats with one engine (Pleasure) up to 26' and displacement hull boats with two engines (Pleasure)up to 26'.
Features:
Cylinder Model: BA135-7ATM
Stroke: 7" (177.8mm)
Shaft Diameter: .63" (15.9mm)
Body Diameter: 1.35" (34mm)
Rod End Diameter: 1/2"
All anodized aluminum construction
Adjustable o-ring sealed ports
Common components (i.e. end glands, pistons, seals)
This cylinder uses the adjustable stainless steel O-ring seal (ORB) fittings
SeaStar inboard marine hydraulic steering cylinders are designed for single and dual rudder vessels with two axis articulation and easy autopilot interface. Manufactured with regular marine duty aluminum, these cylinders have a wide range of boat steering applications.
Cylinder fits planning hull boats with one engine (Pleasure) up to 32' and planning hull boats with two engines (Pleasure) up to 38'. Also fits displacement hull boats with one engine (Pleasure) up to 26' and displacement hull boats with two engines (Pleasure)up to 26'.
Features:
This cylinder uses the adjustable stainless steel O-ring seal (ORB) fittings
| Brand | Dometic Marine |
|---|---|
| Cross Reference / Specs | SEASTAR SOLUTIONS
CYLINDER MODEL USE WITH: |
