Dometic HC5319-3 SeaStar Inboard Cylinder

SKU:
TELHC5319-3
|
MPN
HC5319-3
|
UPC:
731957934741
Our Price: $899.99
Current Stock:
2
Adding to cart… The item has been added

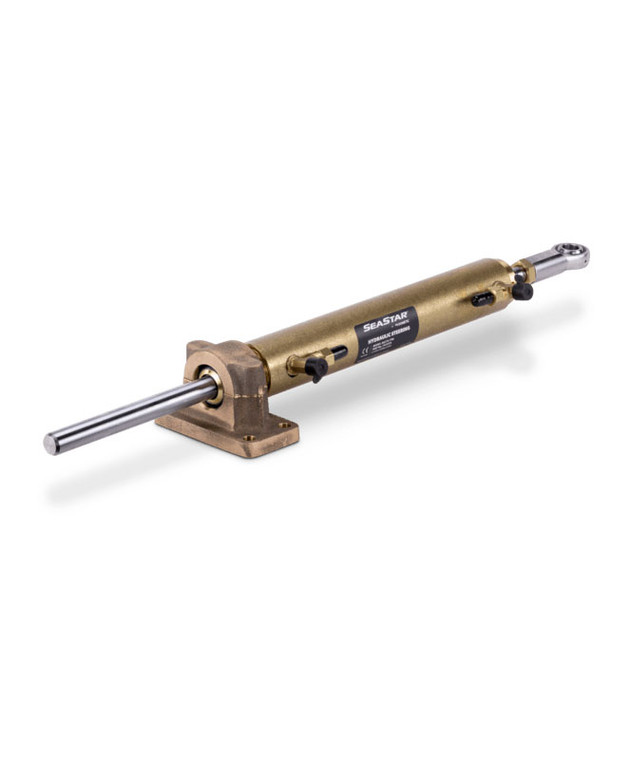

Dometic HC5319-3 SeaStar Inboard Cylinder.

SeaStar inboard marine hydraulic steering cylinders are designed for single and dual rudder vessels with two axis articulation and easy autopilot interface. Manufactured with regular marine duty aluminum, these cylinders have a wide range of boat steering applications.

Cylinder fits planning hull boats with one engine (Pleasure) up to 44', planning hull boats with one engine (Work) up to 38', planning hull boats with two engine (Pleasure) up to 50', planning hull boats two engines (Work) up to 44' and displacement hull boats with one engines (Pleasure) up to 38', displacement hull boats with two engines (Pleasure) up to 44', and displacement hull boats with two engines (Work) up to 38'. Will also fit Sail boats with one engine (Pleasure) up to 44' and Sail boats with two engines (Work) up to 38'.

Features:
  • Cylinder Model: BA175-7TM

  • Stroke:7" (177.8mm)

  • Shaft Diameter: .75" (19.0mm)

  • Body Diameter: 2.00" (50.8mm)

  • Rod End Diameter: 1/2"

  • All anodized aluminum construction

  • Adjustable o-ring sealed ports

  • Common components (i.e. end glands, pistons, seals)


    • This cylinder uses the adjustable stainless steel O-ring seal (ORB) fittings
    Brand Dometic Marine
    Cross Reference / Specs SEASTAR SOLUTIONS
  • HC5319

    • CYLINDER MODEL
  • BA150-7ATM


    • USE WITH:

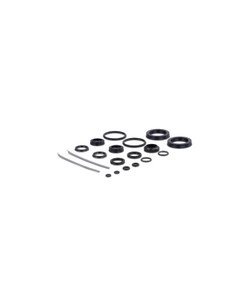

  • HS5183 - Seal Kit
  • HP6071 - Seal Kit
  • HK4420-3 - SeaStar Steering Kit
    		•
