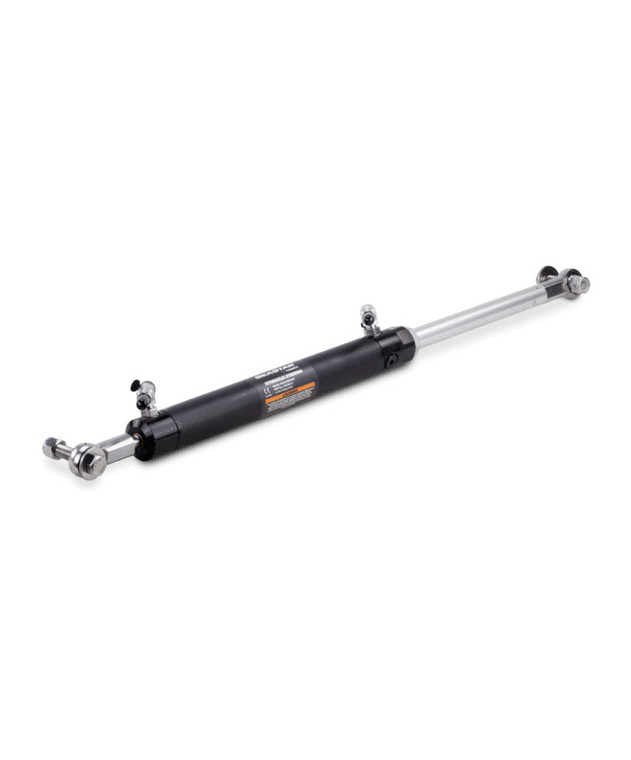

Dometic HC5323-3 SeaStar Inboard Cylinder
Dometic HC5323-3 SeaStar Inboard Cylinder.
SeaStar inboard marine hydraulic steering cylinders are designed for single and dual rudder vessels with two axis articulation and easy autopilot interface. Manufactured with regular marine duty aluminum, these cylinders have a wide range of boat steering applications.
These Hynautic univeral mount cylinders are balanced cylinders are double rod ended, each end held in place with internal wire ties. Every cylinder is equipped with a swivel joint at each end. One provides for a fixed mount attachment point at the end of the housing to protect the moving rod. The other swivel joint, located at the rod end, allows for free movement of the cylinder without binding when attached to the rudder arm.
Features:
Cylinder Model: 125-9HYK19
Stroke: 9” (229mm)
Shaft Diameter: .75" (19.0mm)
Body Diameter: 1.75" (44.4mm)
Rod End Diameter: 1/2"
This cylinder uses the adjustable stainless steel O-ring seal (ORB) fittings
SeaStar inboard marine hydraulic steering cylinders are designed for single and dual rudder vessels with two axis articulation and easy autopilot interface. Manufactured with regular marine duty aluminum, these cylinders have a wide range of boat steering applications.
These Hynautic univeral mount cylinders are balanced cylinders are double rod ended, each end held in place with internal wire ties. Every cylinder is equipped with a swivel joint at each end. One provides for a fixed mount attachment point at the end of the housing to protect the moving rod. The other swivel joint, located at the rod end, allows for free movement of the cylinder without binding when attached to the rudder arm.
Features:
This cylinder uses the adjustable stainless steel O-ring seal (ORB) fittings
| Brand | Dometic Marine |
|---|---|
| Cross Reference / Specs | HYNAUTIC
SEASTAR SOLUTIONS CYLINDER MODEL USE WITH: |
