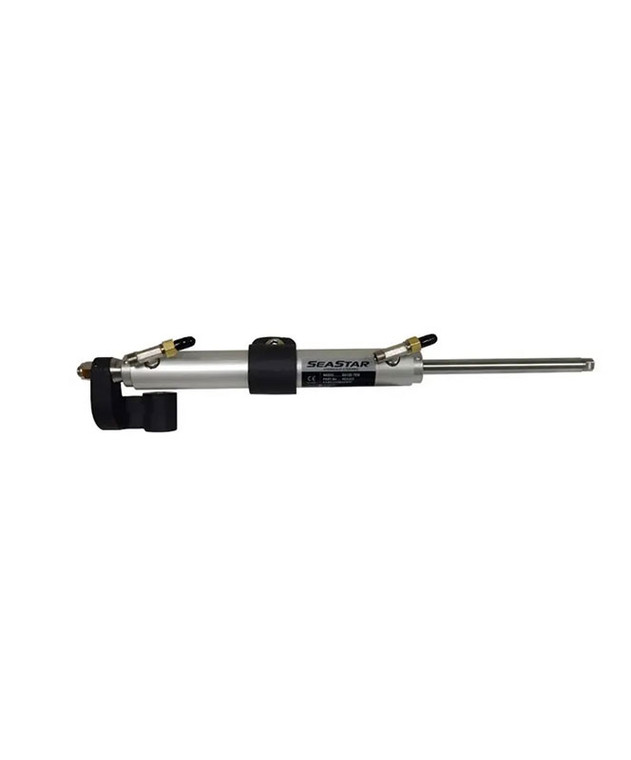

Dometic HC5332 SeaStar Sterndrive Cylinder
Dometic HC5332 SeaStar Sterndrive Cylinder.
SeaStar inboard marine hydraulic steering cylinders are designed for single and dual rudder vessels with two axis articulation and easy autopilot interface. Manufactured with regular marine duty aluminum, these cylinders have a wide range of boat steering applications.
This cylinder fits Mercury Marine "Non-Power" Aplha One, Braco One, Two and Three 1984 to date and Volvo Penta "Non-Power" SX, 280, 290 and Diesel to date.
Features:
Cylinder model: 125-6VPS, 92VPS and 125-8EM
Stroke: 8” (203mm)
Shaft Diameter: .50" (12.7mm)
This cylinder uses the adjustable stainless steel O-ring seal (ORB) fittings
NOTE: HC5332 replaces HC5326 as of January 2000. If installing HC5326, additional clevis supplied by engine manufacturer required. Mastry Engine part #B98735A1. The installation of the HC5332 sterndrive cylinder requires the use of SeaStar Outboard hose only. DO NOT use extruded nylon tubing or copper tubing.
SeaStar inboard marine hydraulic steering cylinders are designed for single and dual rudder vessels with two axis articulation and easy autopilot interface. Manufactured with regular marine duty aluminum, these cylinders have a wide range of boat steering applications.
This cylinder fits Mercury Marine "Non-Power" Aplha One, Braco One, Two and Three 1984 to date and Volvo Penta "Non-Power" SX, 280, 290 and Diesel to date.
Features:
This cylinder uses the adjustable stainless steel O-ring seal (ORB) fittings
NOTE: HC5332 replaces HC5326 as of January 2000. If installing HC5326, additional clevis supplied by engine manufacturer required. Mastry Engine part #B98735A1. The installation of the HC5332 sterndrive cylinder requires the use of SeaStar Outboard hose only. DO NOT use extruded nylon tubing or copper tubing.
| Brand | Dometic Marine |
|---|---|
| Cross Reference / Specs | SEASTAR SOLUTIONS
CYLINDER MODEL USE WITH: |
PROPOSITION 65 WARNING: FOR MORE INFORMATION, VISIT WWW.P65WARNINGS.CA.GOV
