Dometic SHT91630 NFB Rack Tilt Dash Module Single/Dual Helm

Dometic SHT91630 NFB Rack Tilt Dash Module Single/Dual Helm.

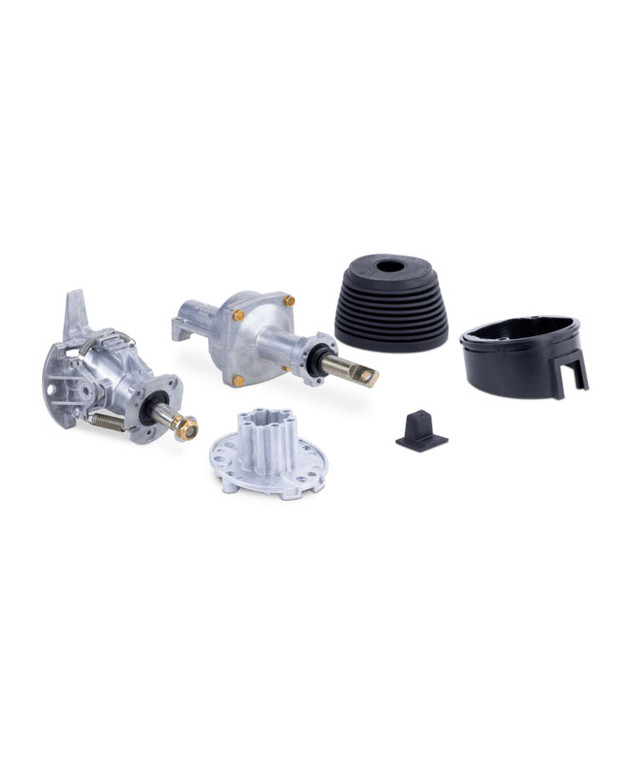

This cast-finish helm has a no-feedback feature and is suitable for mechanical The Rack "Back Mount" single/dual cable steering systems. Includes both the tilt helm and tilt mechanism

Features:

For Single/Dual Cable Applications

Tilt allows the wheel to be moved in 48° arc, in five positive lock positions

Comfortable 4.2 turns from lock-to-lock

Accepts wheels up to 16" diameter

Standard 3/4” round tapered steering shaft

Four bolts and washers secure cable’s rack housing to helm

Helm requires old style rack cables (will not bolt up to current rack cables)

Dual cable has one rack housing with two cables attached. Single helm works on both single and dual cable applications
