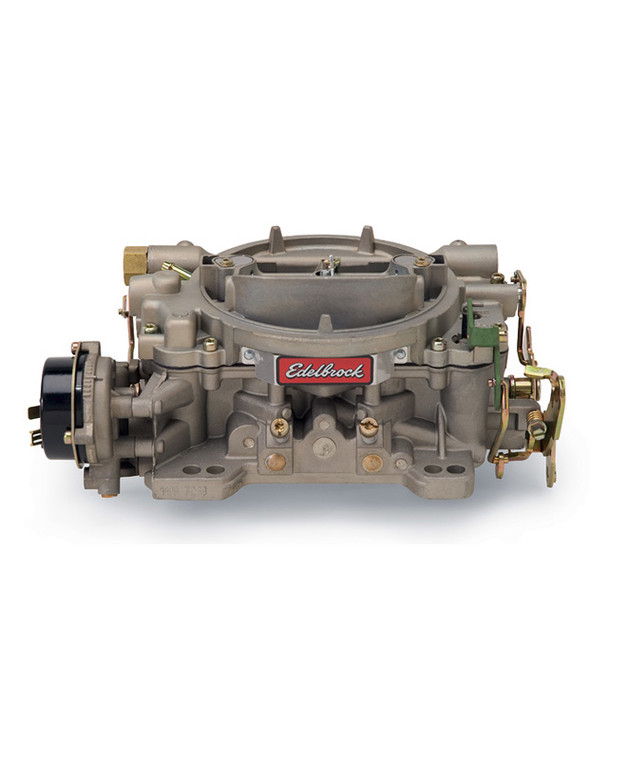

Edelbrock 1409 Marine Carb 600 CFM With Electric Choke, Zinc-Dichromate Finish (Non-EGR)
Edelbrock 1409 Marine Carb 600 CFM With Electric Choke, Zinc-Dichromate Finish (Non-EGR).
The Edelbrock 1409 Marine Series 600 CFM electric choke carburetor is a precisely tuned, quality-built carburetor that can handle the harsh abuse only a marine environment can inflict. Several characteristics make the 1409 Marine Series 600 CFM electric choke carburetor an outstanding marine performer.
This will replace Weber, Holley carburetors and some Rochester quadrajet carburetors. Some additional parts may be required. Used on Chrysler LM318/360 along with GM small block engines (5.0 and 5.7-Liter) with a square bore intake manifold. Also can be used to replace Weber carburetors used on some mercruiser engine applications.
Features:
Metering Rod Size: .068 x .047 in
Gasket Or Seal Included: Yes
Barrel Quantity: 4 Barrel
Flange Type: Square
Secondary Jet Diameter: 0.101
Main Venturi Diameter: 1.19
Body Height: 3.25
Bore Diameter: Primary Bore 1.44; Secondary Bore 1.69
Spring Force: 5" Hg (Orange)
The Edelbrock 1409 Marine Series 600 CFM electric choke carburetor is a precisely tuned, quality-built carburetor that can handle the harsh abuse only a marine environment can inflict. Several characteristics make the 1409 Marine Series 600 CFM electric choke carburetor an outstanding marine performer.
This will replace Weber, Holley carburetors and some Rochester quadrajet carburetors. Some additional parts may be required. Used on Chrysler LM318/360 along with GM small block engines (5.0 and 5.7-Liter) with a square bore intake manifold. Also can be used to replace Weber carburetors used on some mercruiser engine applications.
Features:
| Brand | Edelbrock |
|---|---|
| Cross Reference / Specs | CHRYSLER MARINE
MALLORY MARINE MERCURY MARINE SIERRA MARINE USE WITH: |
PROPOSITION 65 WARNING: FOR MORE INFORMATION, VISIT WWW.P65WARNINGS.CA.GOV
Related Products
-
-
-
Out of stock

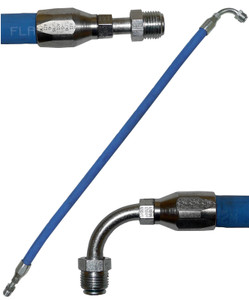

Areoquip 5/16" Id Flexible Fuel Line, 3/8" Fittings, One 90°, One Straight
