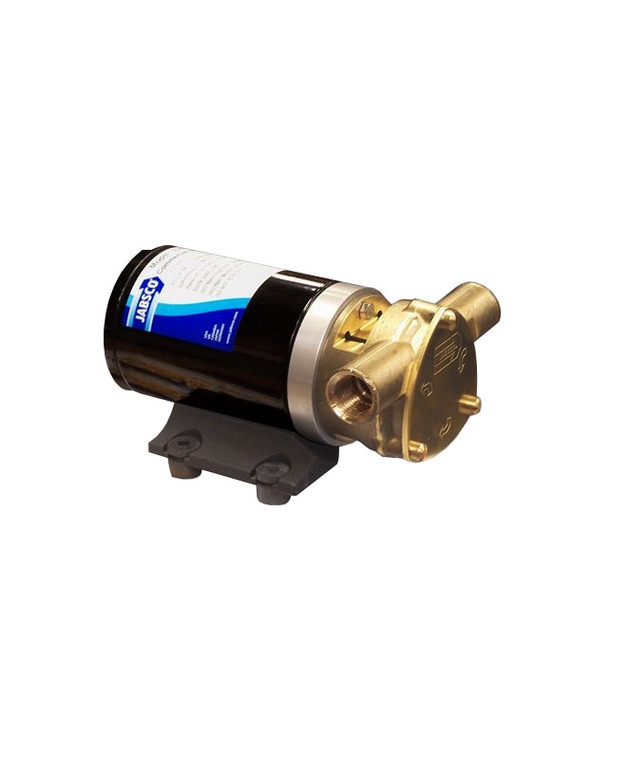

Jabsco 18670-0123 Commercial Duty Water Puppy 12V Pump
Jabsco 18670-0123 Commercial Duty Water Puppy (US) Bronze DC Pump.
Small bilge debris present no problem to these bronze bodied, flexible impeller pumps. Simple design means fewer wearing parts. ISO 8846 MARINE (Ignition protection). ISO 8849 MARINE (Bilge pump standard).
Use for bilge pumping, livewell circulation, washdown and general pumping requirements. For intermittent duty, motor may be reversed to empty bait tank.
Flow rate: 8 USgallons/min (30.4 Litres/min)
Self-priming from dry up to 1.2m (4ft)
Body Materials Bronze
Impeller Nitrile
Seal Lip Type
Voltage 12 (Vdc)
Motor Type Permanent magnet type, fully enclosed, stainless steel shaft, ball type shaft bearing, has adequate torque to reverse the pump
Port Type 1/2" Internal Pipe Threads
1" External Hose Barb
Adapter for 3/4 " External GardenHose Thread included
Dimensions 7.6 x 12.0 x 17.5 (cms)
3 x 4-3/4 x 6-7/8 (inches)
Weight 2.7 (kg)
6 (lb)
Small bilge debris present no problem to these bronze bodied, flexible impeller pumps. Simple design means fewer wearing parts. ISO 8846 MARINE (Ignition protection). ISO 8849 MARINE (Bilge pump standard).
Use for bilge pumping, livewell circulation, washdown and general pumping requirements. For intermittent duty, motor may be reversed to empty bait tank.
Flow rate: 8 USgallons/min (30.4 Litres/min)
Self-priming from dry up to 1.2m (4ft)
Body Materials Bronze
Impeller Nitrile
Seal Lip Type
Voltage 12 (Vdc)
Motor Type Permanent magnet type, fully enclosed, stainless steel shaft, ball type shaft bearing, has adequate torque to reverse the pump
Port Type 1/2" Internal Pipe Threads
1" External Hose Barb
Adapter for 3/4 " External GardenHose Thread included
Dimensions 7.6 x 12.0 x 17.5 (cms)
3 x 4-3/4 x 6-7/8 (inches)
Weight 2.7 (kg)
6 (lb)
| Manuals and Instructions | |
|---|---|
| Brand | Jabsco |
| Cross Reference / Specs | 16360-1003 18670-0123
|
