Jabsco 30573-0003 Accumulator Tank

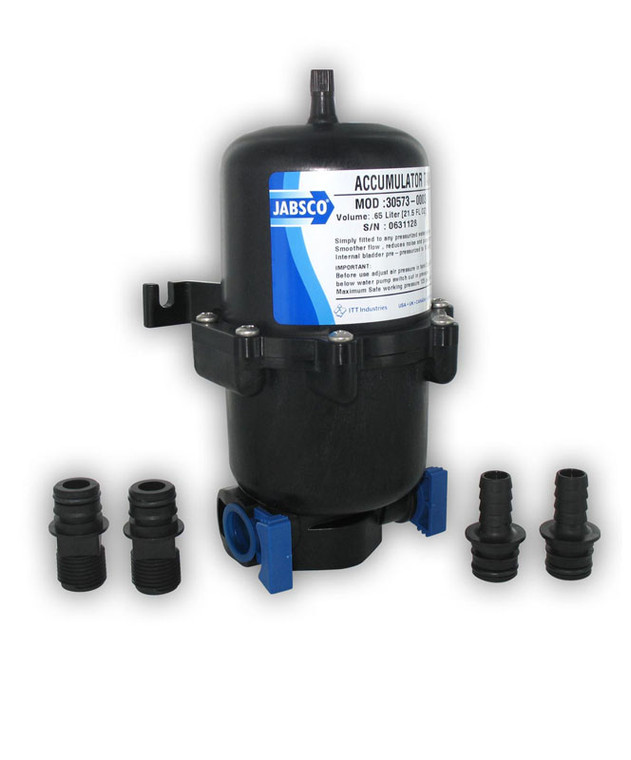

Jabsco 30573-0003 Mini Accumulator Tank.
This accumulator tank is intended for installation in any pumped water system controlled by a pressure switch, and may also be used with air-driven pumps. The tank can serve as a storage vessel as well as a pulsation dampener for pressurized fluid. The accumulator tank smoothes water flow and reduces on/off switch cycling of the pump by lessening the variation in pressure and flow between the pump and the system discharge points.The even flow of water gives better control of hot water temperature with systems using instant water heaters.
Features:
Internal bladder
Smoother flow
Quieter water system
Longer pump life
Easily fitted to new or existing systems
Compact size
Quick-connect/disconnect port flttings
Mounting point for optional pressure switch
Food grade materials, NSF Standard 18 listed
Specifications:
Pre-Charged Pressure: 10 (psi) 0.7 (bar)
Dimensions: 21.4 x11.9 (cms) 8.4 x 4.7 (inches)
Volume: 21.5 oz. (Gallons) 0.65 (Litre)
Max. Pressure: 125 (psi) 8.6 (bar)
Weight: 0.44 (kg) 0.96 (lb)
This accumulator tank is intended for installation in any pumped water system controlled by a pressure switch, and may also be used with air-driven pumps. The tank can serve as a storage vessel as well as a pulsation dampener for pressurized fluid. The accumulator tank smoothes water flow and reduces on/off switch cycling of the pump by lessening the variation in pressure and flow between the pump and the system discharge points.The even flow of water gives better control of hot water temperature with systems using instant water heaters.
Features:
Specifications:
| Manuals and Instructions | 30573-0003 Datasheet |
|---|---|
| Brand | Jabsco |
| Cross Reference / Specs |
