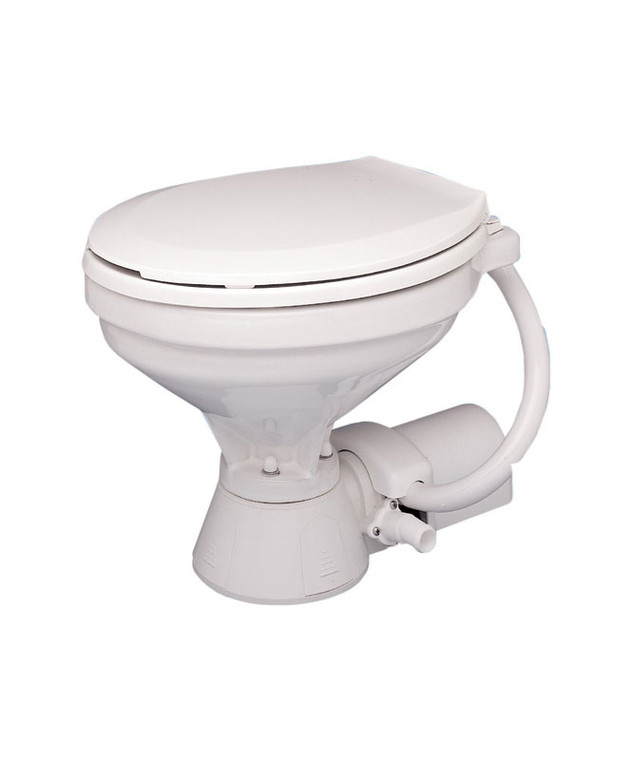

Jabsco 37010-4092 Regular Bowl 12V Toilet
Jabsco 37010-4092 Regular Bowl 12V Toilet. DO NOT USE WITH DOMESTIC WATER SYSTEMS, FOR SEAWATER OR LAKE WATER FEED ONLY.
A dual-function pump eliminates the need for hand pumps and dry-bowl valves. With the push of a button, the self-priming flexible impeller flush pump rinses the bowl as the macerator and high-capacity scavenger pump grinds up waste and pumps it out. Has a built-in back flow preventer. Uses a permanent magnet type motor, fully enclosed, with stainless steel shaft. Includes a heavy-duty pushbutton and 1" to 1-1/2" discharge hose adapter. Easy-to-clean china bowl.
Note: Jabsco Electric toilets are designed specifically for marine use.
Features:
Bowl Size: Household
Voltage 12v
Self priming, dry, height: 4'
Discharge height: 4'
Connections:3/4" inlet, 1" discharge
Recommended Fuse Size (AMP): 25
Flush Control Switch: Single Button Panel
Height Inch (mm): 14.3 (365)
Width Inch (mm): 14.7 (375)
Depth Inch (mm): 19.1 (486)
White Vitreous China Bowl
Baked enamel seat and cover
Flexible Impeller Flush Pump
Permanent Magnet Type Motor, Fully Enclosed, with Stainless Steel Shaft
High Capacity Waste Macerator and Bowl discharge Pump
Built-in Back Flow Preventer
Corrosion resistant material for marine use
A dual-function pump eliminates the need for hand pumps and dry-bowl valves. With the push of a button, the self-priming flexible impeller flush pump rinses the bowl as the macerator and high-capacity scavenger pump grinds up waste and pumps it out. Has a built-in back flow preventer. Uses a permanent magnet type motor, fully enclosed, with stainless steel shaft. Includes a heavy-duty pushbutton and 1" to 1-1/2" discharge hose adapter. Easy-to-clean china bowl.
Note: Jabsco Electric toilets are designed specifically for marine use.
Features:
| Brand | Jabsco |
|---|---|
| Cross Reference / Specs | JABSCO
|
