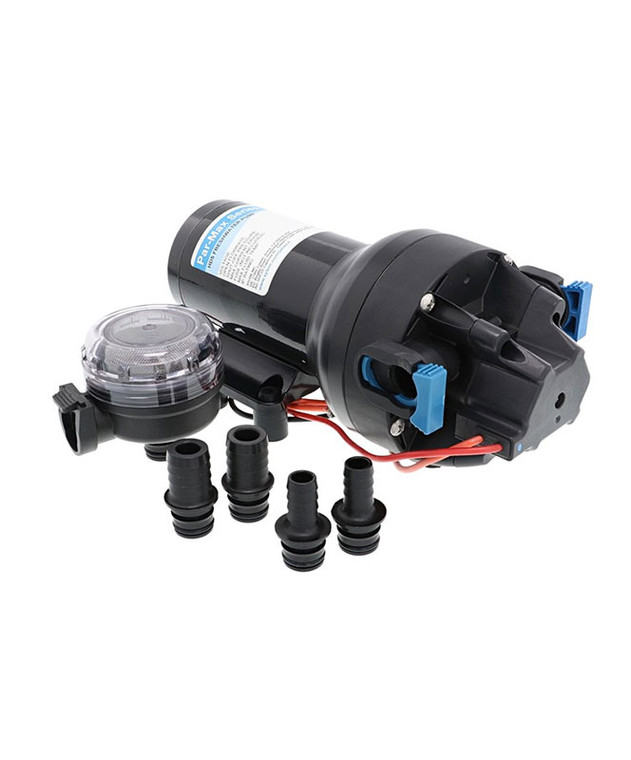

Jabsco P501J-118S-3A Par-Max HD5 Freshwater Delivery Pump

Jabsco P501J-118S-3A Par-Max HD5 Freshwater Delivery Pump.

Jabsco’s updated and improved lineup of freshwater supply pumps are designed to provide years of satisfactory service in applications both large and small.

The Par-Max HD model includes a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life.

Features:

Flowrate: 5 GPM (18.9 LPM)

Nominal Voltage: 12 VDC

Application: Water Pressure System

Max Amp Draw [AMPS]: 13

Recommended Fuse Size [Amps]: 20

Pressure Switch Off Setting [PSI]: 60 PSI (4.1 BAR)

Ports: 2 x 1/2" (13mm) Straight HB, 2 x 3/4" (19mm) Straight HB

Co-molded diaphragm technology for long life and durability

HD model featuring heavy duty, motor and cast aluminum lower housing which allow for long-life, even at high pressures

Efficient and quiet operation

Integrated, sealed pressure switch for on-demand operation

Self-priming allows for installation versatility

Runs Dry Without Damage

Self-Priming

Quick connect ports for ease of installation, servicing, and maintenance

Vibration dampening mounting feet

Equipped with integrated bypass module to reduce cycling and provide smoother flow
