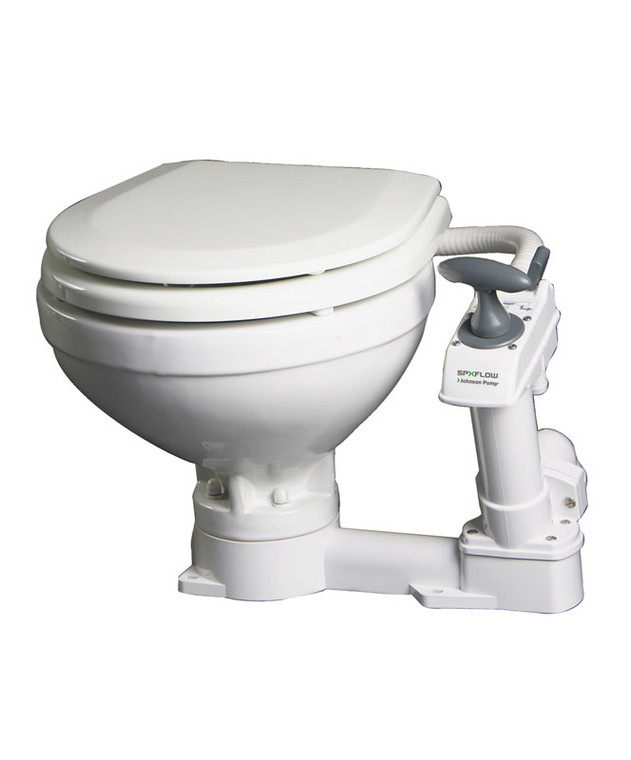

Johnson Pump 80-47229-01 AquaT Toilet Manual Compact

Johnson Pump 80-47229-01 AquaT Toilet Manual Compact.

SPX FLOW Johnson Pump Compact bowl manually operated marine toilets can be installed in both power and sailing craft, either above or below the waterline, for use on sea, river, lake or canal. The waste can be discharged into a treatment system or into an on-board holding tank.

Note: SPX FLOW Johnson Pump manual toilets are designed specifically for marine use.

Features:

Low water consumption (2-2.5 L/flush)

Self priming, dry, height: 3'

Discharge height: 9'

Flexible hole pattern on the base, for easy substitution with the most common toilets on the market

Reversible pump mounting allows re-assembly for left hand operation by installer

Self-priming, double acting piston pump

Piston rod guide in brass for increased service life

Strong swirl action for efficient flushing

Smooth design for easy cleaning

Ergonomic handle

Spring assisted top valve closure for easier priming

Constant 38mm (1-1/2") bore waste path minimizes blockages

Double check-valves at full 38mm (1-1/2") bore prevent back flow

Multi-angle outlet for various installations

Accessible mounting points for faster installation

Standard fastenings, logic located, no need for special tools

Double sealed base plug for winter drain and easy cleaning access

Plastic seat made of polypropylene

Hygienic white ceramic bowl for ease of cleaning

Pump and base moulded in ABS or polypropylene, stainless steel fastenings, brass weights and neoprene seals and gaskets
