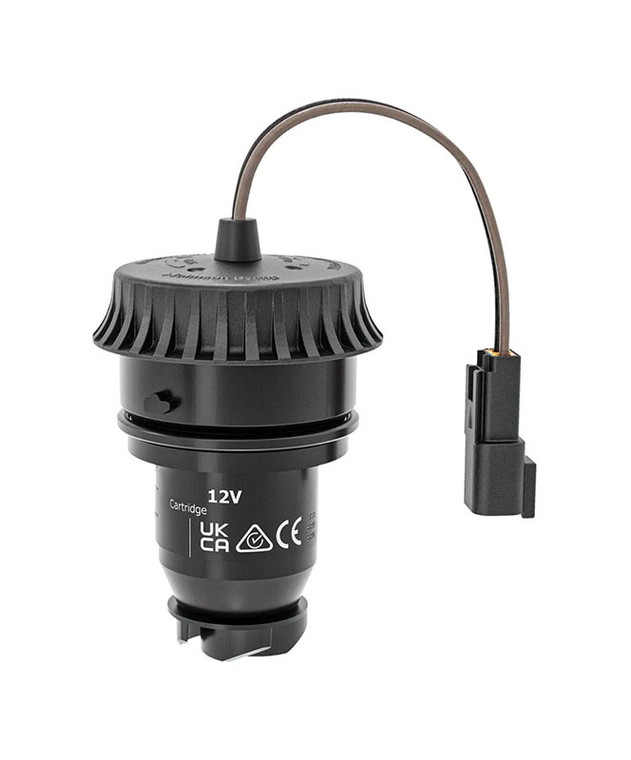

Johnson Pump Marine 09-36336-04 Aqua Series Automatic 500 GPH Replacement Catridge Motor 12v

Johnson Pump Marine 09-36336-04 Aqua Series Automatic 500 GPH Replacement Catridge Motor 12v.

Experience the Industry-First Quick-Change Motor Connection - Aqua Void Auto is now available with an auto-sensing motor cartridge that detects the presence of water using resistance. The pump automatically activates when water is detected, eliminating the need for an external switch. Keep everything else already in the features.

Our groundbreaking product features a quick-change motor connection for hassle-free cartridge motor changes or capacity upgrades.

Enjoy Enhanced Efficiency and Higher Flow Rate - Powered by an enhanced motor and high-flow impeller, the Aqua Void achieves increased efficiency and a higher flow rate while conserving energy consumption.

Key Features

Pump Size: 500 GPH

Voltage: 12

Amp: 2.7A

Fuse: 3.5A

Wire Size: 16 GA, TAC

Shaft seal: Nitrile Rubber

Shaft: 316 Stainless Steel

Heightened Efficiency with an Increased Flow Rate - High Flow Impeller Design

Quick-Change Motor Connection Enjoy Quick and Hassle-Free Cartridge Motor Changes or Capacity Upgrades. Industry First and Only Cartridge Motor Pump with included harness connection requiring no cutting and splicing of wires

Water-cooled motor for long service intervals

Compact, all-in-one motor/impeller unit with stainless steel (316) shaft

No tools needed for maintenance, no need for complete disassembly. You can now leave the pump casing attached to both the boat and the hoses.

Meets the international standard, ISO 8849 marine
