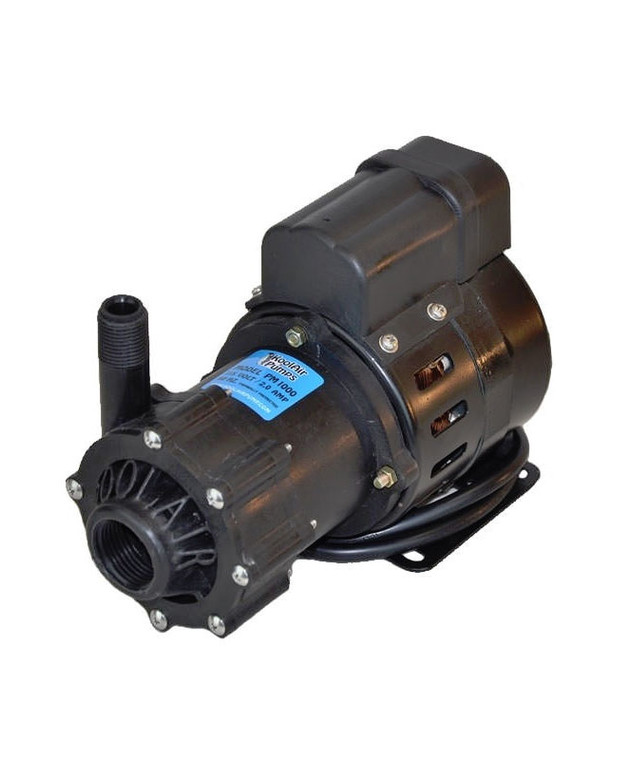

KoolAir Pumps PM1000-230 Magnetic Drive Pump
KoolAir Pumps PM1000-230 Magnetic Drive Pump. NOTE: 230-volt pump.
The KoolAir PM1000-230 Magnetic Drive Pump is most commonly used for marine air conditioning and fountains. The PM1000 is magnetically driven pump with no shaft seal and the motor is Open Drop Proof (ODP). The hardened Carbon bushing allows for extended run dry time without any damage to the pump head. NOTE: Limited warranty: 6-month limited warranty for pleasurecraft use and 3-month limited warranty for commercial use.
Features:
Max Flow: 17.2 GPM / 54.8 LPM
Max Head: 27 FT / 6 M
Power: 1/8 HP / .093 KW
Electrical: 230V 50
Phase: 1
Watts: 207
HP/kW: 1/8
Submersible: NO
Inlet: 1" FPT
Outlet: 1/2" MPT
Cord Lneght: 56"
Pumps both fresh and salt water
Wet End: Reinforced Polypropylene (Front and Rear Housing, Impeller), Buna N (O-Ring), Ceramic (Shaft, Thrust Washer), Ceramic Magnet
OPERATION: The pump is not self-priming and requires a flooded suction. The pump has run dry and thermal overload protection. The pump is dry run protected to withstand thermal overloads without failure. When cooled, the pump will resume operating normally.
The KoolAir PM1000-230 Magnetic Drive Pump is most commonly used for marine air conditioning and fountains. The PM1000 is magnetically driven pump with no shaft seal and the motor is Open Drop Proof (ODP). The hardened Carbon bushing allows for extended run dry time without any damage to the pump head. NOTE: Limited warranty: 6-month limited warranty for pleasurecraft use and 3-month limited warranty for commercial use.
Features:
OPERATION: The pump is not self-priming and requires a flooded suction. The pump has run dry and thermal overload protection. The pump is dry run protected to withstand thermal overloads without failure. When cooled, the pump will resume operating normally.
| Brand | KoolAir Pumps |
|---|---|
| Cross Reference / Specs | MARCH PUMPS
|
