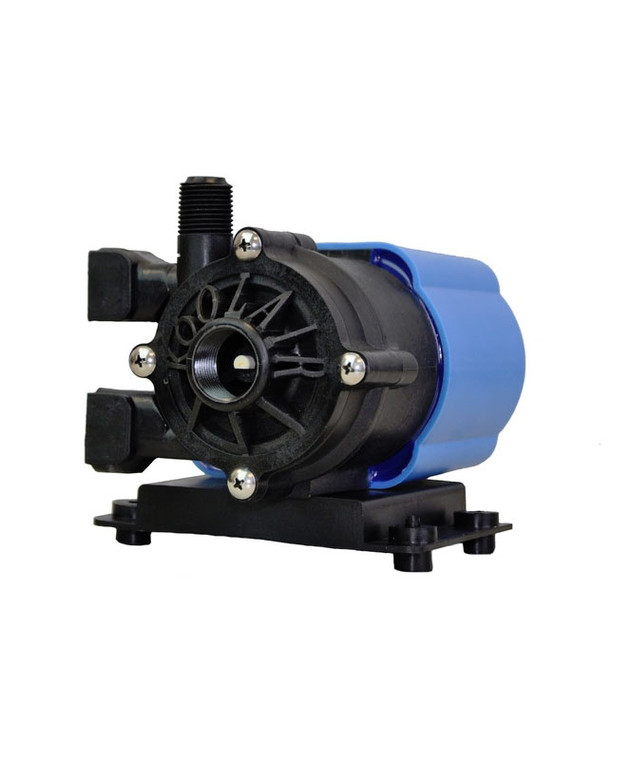

KoolAir Pumps PM500-115 Magnetic Drive Pump

KoolAir Pumps PM500-115 Magnetic Drive Pump.

The KoolAir PM500-115 Magnetic Drive Pump is most commonly used for marine air conditioning and fountains. The PM500 is magnetically driven pump, with no shaft seal. The pump is epoxy encapsulated, which allows the PM pump to run fully submerged in many liquids or in open air for complete moisture protection. Replaces MARCH LC-3CP-MD and others PM500, P500, PML500, WPC500, TR-500, D8152 and AQPM-05. NOTE: Limited warranty: 6-month limited warranty for pleasurecraft use and 3-month limited warranty for commercial use.

Features:

Max Flow: 8.5 GPM 31 LPM

Max Head: 19 FT 4.3 M

Power: .05 HP .037 KW

Electrical: 115V 50 HZ

Phase: 1

Watts: 120

HP/kW: 1/20

Submersible: Yes

Inlet: 3/4" FPT

Outlet: 1/2" MPT

Cord Lneght: 6'

Pumps both fresh and salt water

Wet End: Polypropylene (Front and Rear Housing, Impeller), Cooling Tube, Buna N (O-Ring, Cooling Tube Seal), Ceramic (Shaft, Thrust Washer), Ceramic Magnet

Uses: Submersible or Open Air

When submerged, the following is also in contact with the solution: Epoxy, Stainless Steel, Polysulfone, Cord

OPERATION: The pump is not self-priming and requires a suction. The pump has run dry and thermal overload protection. In a run dry situation the pump will shut down. Simply let it cool down or hose it down to assist in the cooling.
