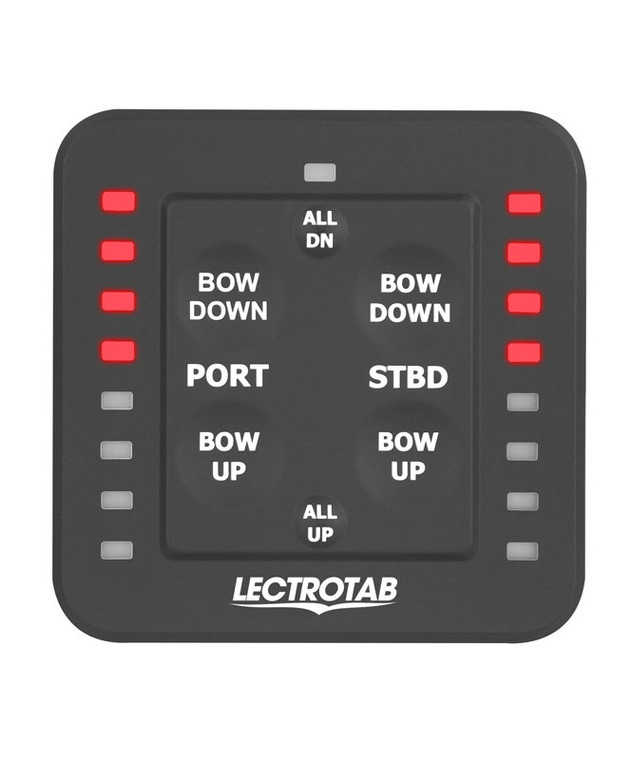

Lectrotab SLC-11 One-Touch Leveling LED Control

Lectrotab SLC-11 One-Touch Leveling LED Control.

Lectrotab is excited to introduce a new control incorporating features requested by boat owners to provide a user friendly control for a more enjoyable boating experience.

Features:

Color: Black

Number of Stations: 1 or 2 Stations / 1 or 2 Actuators/tab

Overall Width: 3.0" (77mm)

Overall Height/Thickness: 3.0" (77mm) to 437" (11mm)

Mounting Hole Cutout (diameter): 2.25" (57mm) to 2.5" (64mm)

Operates on 12 or 24 volt dc systems

Fuse Size Power Input (1 actuator per tab): 12vdc = 15 or 20 amp | 24 vdc = 10amp

Fuse Size AUX Terminal (MUST CONNECT): 1 to 2 amp

One-Touch button to raise/lower tabs

Automatic tab position return

Completely sealed and waterproof

Microprocessor based trim tab control with LED tab position indicators

Single button press to move both tabs up or down simultaneously

Direct replacement for Oval LED (SETR-61) controls

Automatic return to last tab position if ignition key is turned off and back on again

Completely sealed, completely waterproof and will not deteriorate in sunlight

Automatic tab retraction and calibration with key or accessory switch off

Easy upgrade from rocker switch style control

No external power module required for single or dual actuator per tab systems

LED tab position indicators dim automatically in darkness and brighten in sunlight

Adjustable programming features located on back of specification sheet
