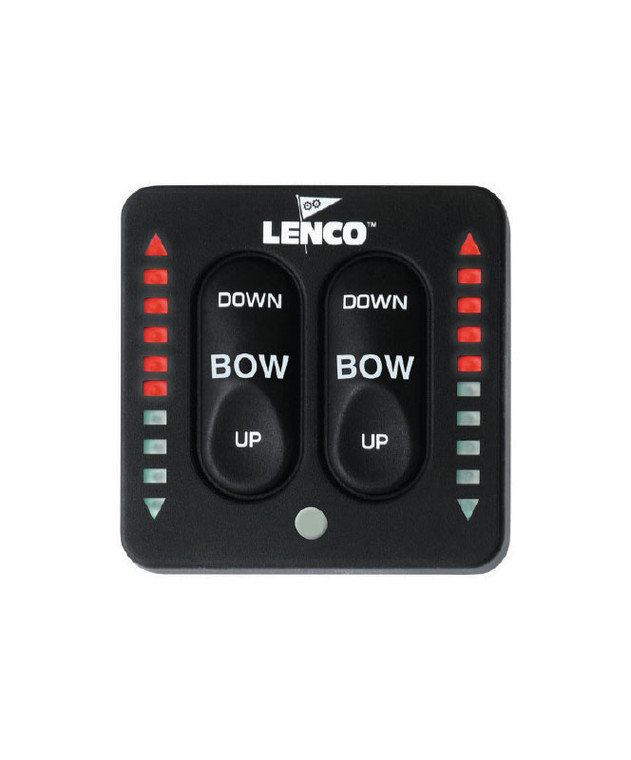

Lenco Marine 15170-001 Led Integrated Switch Kit (Single)
This item is sold BY THE FOOT. Quantity equals ONE foot. i.e. Qty: 1 = 1', Qty: 5 = 5'. The MAXIMUM SHIPPABLE LENGTH iS 7' (84") ANY ORDER OVER 7' WILL BE CUT INTO TWO EQUAL LENGTHS.
Lenco Marine 15170-001 Led Integrated Switch Kit (Single).
ALL IN ONE
Complete your Lenco trim tab system with the latest, maintenance-free (ALL-IN-ONE) integrated tactile switch kit design. This NEW switch technology improves accuracy and integrates the control box functionality into the key pad bezel.
LED indicator lights let you know exactly where your trim tabs are at all times. A backlit keypad automatically illuminates graphics for night viewing. A photo eye reads ambient light and adjusts the indicator intensity for optimum viewing in all lighting conditions.
Features:
12 & 24-Volt for Single Actuator Systems
Simple, quick, Plug & Play installation
Instant response
Built-in retractor
Low profile design
Self-contained key pad with waterproof Plug & Play Deutsch connectors
Wiring harness length 30" (76.2 cm) from the back of the switch bezel
36" power pigtail
2-1/16" hole cut-out size, overall key pad size of 2.75" x 2.75"
4.08" clearance required from the back of the key pad's mounting location
2 high-intensity LED Indicator displays show the exact position of your trim tabs at all times
Photo Eye for optimum viewing in all light conditions
Backlit key pad for optimum viewing at night
Self-Check feature
ATTENTION: REPLACEMENT KEY PADS & CONTROL BOXES FOR 2016 & PRIOR SWITCHES ARE NOT COMPATIBLE WITH THIS SWITCH KIT.
ALL IN ONE
Complete your Lenco trim tab system with the latest, maintenance-free (ALL-IN-ONE) integrated tactile switch kit design. This NEW switch technology improves accuracy and integrates the control box functionality into the key pad bezel.
LED indicator lights let you know exactly where your trim tabs are at all times. A backlit keypad automatically illuminates graphics for night viewing. A photo eye reads ambient light and adjusts the indicator intensity for optimum viewing in all lighting conditions.
Features:
ATTENTION: REPLACEMENT KEY PADS & CONTROL BOXES FOR 2016 & PRIOR SWITCHES ARE NOT COMPATIBLE WITH THIS SWITCH KIT.
| Brand | Lenco Marine, Inc. |
|---|---|
| Cross Reference / Specs |
