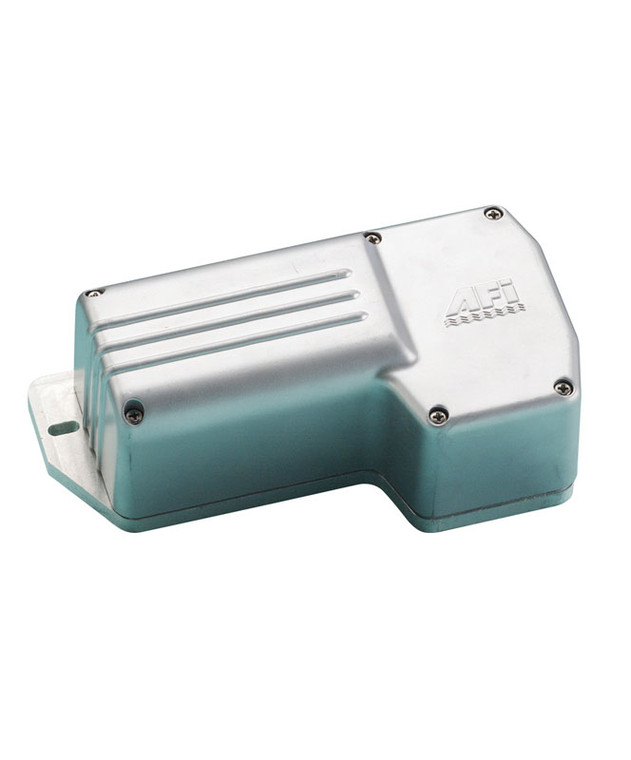

Marinco 71082 Wiper Motor, 1.5 Series, 12V, 2.5" Shaft, 80 Degree

Marinco 71082 Wiper Motor, 1.5 Series, 12V, 2.5" Shaft, 80 Degree

The 1.5 Waterproof Wiper Motor is made with a fully sealed powder coated aluminum waterproof base and housing to power a 22" Deluxe arm and 22" Deluxe blade combination or a 20" Premier arm and 20" Premier blade combination.


Features:

Available in three shaft lengths: 1.5", 2.5" and 3.5" (includes .5" length of knurled arm fitting)

Factory pre-set sweep angles of 80 degree or 110 degree, with easy adjustment to 45 degree or 60 degree

Chrome plated solid brass knurled drive nut with brass and stainless steel drive shaft

Two speed motor

Sealed 6" wire leads, 16 AWG

Adjustable right or left self parking

0.625" diameter shaft (16 mm)

Available in 12V and 24V models

Coast to park

RF shielded circuitry

Retail version includes 5 amp fuse and holder (operating switch not included)

Measures approximately 7.75" L x 4" W x 2.75" D

Stall torque: 109 in-lbs (125 kgf/cm; 12.3 Nm)

Stall current: 11.5-13.0 amps

No load current: 0.5-1.2 amps

Replaces AFI 2000 motor
