Marinco 82082 Wiper Motor, 2.5 Series, 12V, 2.5" Shaft, 80 Degree

Marinco 82082 Wiper Motor, 2.5 Series, 12V, 2.5" Shaft, 80 Degree

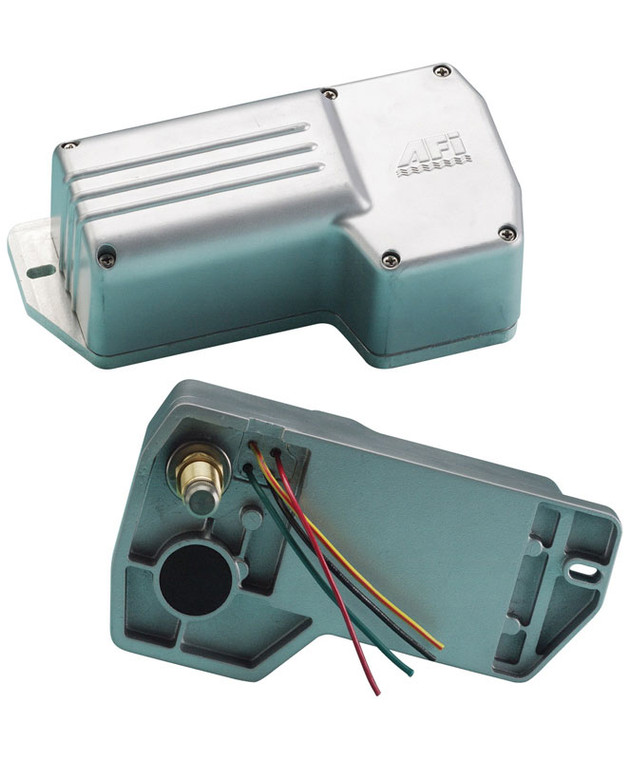

The 2.5 Waterproof Wiper Motor is made with a fully sealed powder coated aluminum waterproof base and housing to power a 26" Deluxe arm and Deluxe blade combination or a 24" Premier arm and Premier blade combination.

Features:

Available in two shaft lengths: 1.5" and 2.5"

Factory pre-set sweep angles of 80 degree or 110 degree, with easy adjustment to 45 degree or 60 degree

Chrome plated solid brass knurled drive nut with brass and stainless steel drive shaft

Two speed motor

Sealed 6" wire leads, 16 AWG

Adjustable right or left self parking

0.625" diameter shaft (16 mm)

Available in 12V and 24V models

Coast to park

RF shielded circuitry

Retail version includes 6 amp fuse and holder (operating switch not included)

Measures approximately 7.875" L x 4.25" W x 3" D

Stall torque: 139 in-lbs (160 kgf/cm; 15.7 Nm)

Stall current: 9.0-10.5 amps

No load current: 1.0 -1.6 amps
