Mercury Marine 14801A1 Elbow Kit

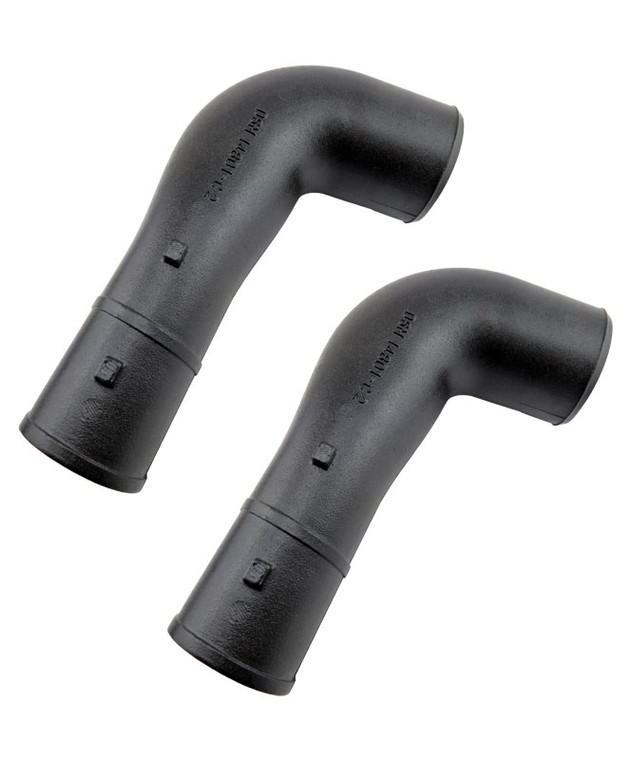

Mercury Marine 14801A1 Elbow Kit (1-PAIR).
Kit replaces the 90° elbows used with 3" (76mm) & 6" (152mm) spacer block kits on 350 MAG MPI Alpha/Bravo & Alpha/Bravo Horizon engine as well as 357, 383 MAG, 5.0, 5.7, 6.2L Carb, EFI & MPI engines. 1-kit is a pair (2-elbows).
**SPECIAL INSTRUCTIONS FOR 3" (76MM) EXHAUST ELBOW RISER KIT INSTALLATION**
Remove approximately 3" (76mm) segment of enclosed elbows, as shown
Deburr cut surface to prevent chafing of tube
Prime the cut aluminum surface with a compatable primer/sealer, or primer plus finish coat. "Black Zinc Chromate" primer/sealer is recommended
Coat inner surfaces of tubes with "Perfect Seal" - slide onto elbows, and double-clamp each connection
NO CUT REQUIRED FOR 6" (152MM) INSTALLATION
Kit replaces the 90° elbows used with 3" (76mm) & 6" (152mm) spacer block kits on 350 MAG MPI Alpha/Bravo & Alpha/Bravo Horizon engine as well as 357, 383 MAG, 5.0, 5.7, 6.2L Carb, EFI & MPI engines. 1-kit is a pair (2-elbows).
**SPECIAL INSTRUCTIONS FOR 3" (76MM) EXHAUST ELBOW RISER KIT INSTALLATION**
NO CUT REQUIRED FOR 6" (152MM) INSTALLATION
| Brand | Mercury Marine |
|---|---|
| Cross Reference / Specs | USE WITH: |
