Mercury Marine 27-863726 Gasket

Mercury Marine

SKU:

MER27863726

MPN

863726

UPC:

745061463509

Our Price: $17.59

Current Stock:

Quantity:

Adding to cart… The item has been added

Description
Additional Details

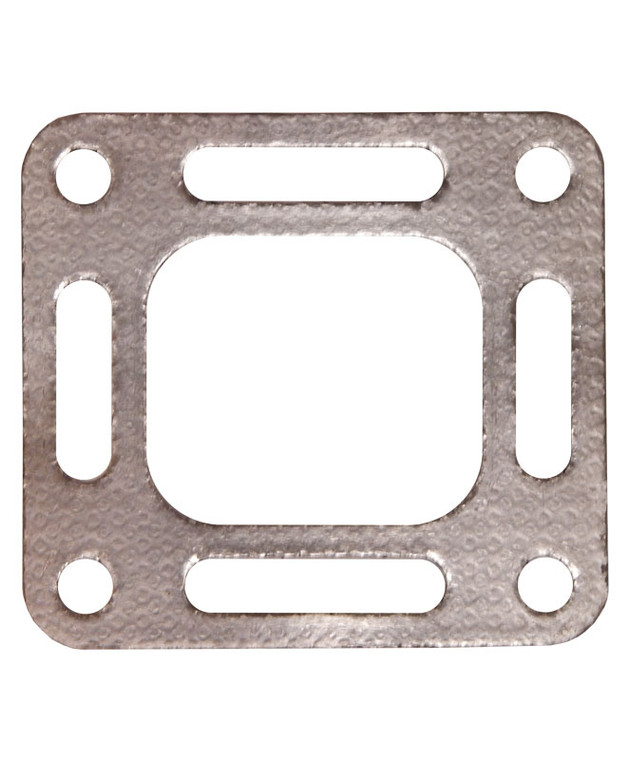

Mercury Marine 27-863726 Exhaust Elbow Gasket.

Features:

Full Flow Gasket

Fits 350 MAG MPI, 357, 383, 4.3L, 454 MAG MPI, 5.0L, 5.7L, 502 MAG MPI, 7.4L, 8.2L, MX6.2L MPI engines.

Also used on engines that do not have check-balls in the thermostat housing (Design III)

Use between the manifold and optional extension blocks

Brand	Mercury Marine
Cross Reference / Specs	MALLORY MARINE 9-61414 MERCURY MARINE 27-860232 27-818832 27-871051 27-87105 GLM 32080 BARR MARINE MC47-27-87105 PRO MARINE 863726 OSCO 8503-GO SIERRA 18-2849 USED ON 200 2 BBL GM 305-1987-1987-0B525982 THRU 0B774444 200 2 BBL GM 305-1985-1985-6218462 THRU 0B525981 200 2 BBL GM 305-1986-1986-6218462 THRU 0B525981 228 4 BBL. GM-1982-1982-6218462 THRU 0B525981 228 4 BBL. GM-1983-1983-6218462 THRU 0B525981 228 4 BBL. GM-1984-1984-6218462 THRU 0B525981 230 4 BBL GM 305-1987-1987-0B525982 THRU 0B773739 230 4 BBL GM 305-1985-1985-6218462 THRU 0B525981 230 4 BBL GM 305-1986-1986-6218462 THRU 0B525981 230 MIE 4 BBL GM 305-1981-1981-5907058 THRU 0B522505 230 MIE 4 BBL GM 305-1982-1982-5907058 THRU 0B522505 230 MIE 4 BBL GM 305-1983-1983-5907058 THRU 0B522505 230 MIE 4 BBL GM 305-1984-1984-5907058 THRU 0B522505 230 MIE 4 BBL GM 305-1985-1985-5907058 THRU 0B522505 230 MIE 4 BBL GM 305-1986-1986-5907058 THRU 0B522505 230 MIE 4 BBL GM 305-1987-1987-0B522506 THRU 0B788151 230 MIE 4 BBL GM 305-1988-1988-0B522506 THRU 0B788151 230 MIE 4 BBL GM 305-1989-1989-0B522506 THRU 0B788151 230 MIE 4 BBL GM 305-1990-1990-0B522506 THRU 0B788151 230 MIE 4 BBL GM 305-1991-1991-0B522506 THRU 0B788151 230 MIE 4 BBL GM 305-1992-1992-0B522506 THRU 0B788151 230 MIE 4 BBL GM 305-1993-1993-0B522506 THRU 0B788151 230 MIE 4 BBL GM 305-1994-1994-0B522506 THRU 0B788151 230 MIE 4 BBL GM 305-1995-1995-0B522506 THRU 0B788151 260 4 BBL GM-1987-1987-0B525982 THRU 0B773739 260 4 BBL GM-1982-1982-6218462 THRU 0B525981 260 4 BBL GM-1983-1983-6218462 THRU 0B525981 260 4 BBL GM-1984-1984-6218462 THRU 0B525981 260 4 BBL GM-1985-1985-6218462 THRU 0B525981 260 4 BBL GM-1986-1986-6218462 THRU 0B525981 260 GM 350-1987-1987-0B525982 THRU 0B773304 260 GM 350-1982-1982-6218462 THRU 0B525981 260 GM 350-1983-1983-6218462 THRU 0B525981 260 GM 350-1984-1984-6218462 THRU 0B525981 260 GM 350-1985-1985-6218462 THRU 0B525981 260 GM 350-1986-1986-6218462 THRU 0B525981 260 MIE GM-1987-1987-0B522506 THRU 0B788196 260 MIE GM 350-1981-1981-5907058 THRU 0B522505 260 MIE GM 350-1982-1982-5907058 THRU 0B522505 260 MIE GM 350-1983-1983-5907058 THRU 0B522505 260 MIE GM 350-1984-1984-5907058 THRU 0B522505 260 MIE GM 350-1985-1985-5907058 THRU 0B522505 260 MIE GM 350-1986-1986-5907058 THRU 0B522505 262 MAG TBI GEN+-1996-1996-0F803800 THRU 0K999999 262 MAG TBI GEN+-1997-1997-0F803800 THRU 0K999999 300 TEMPEST GM-1985-1985-6668677 THRU 0B430367 300 TEMPEST GM-1986-1986-6668677 THRU 0B430367 320 EFI GM-1987-1987-0A543604 THRU 0B157602 320 EFI GM-1988-1988-0B157603 THRU 0C622418 320 EFI GM-1989-1989-0B157603 THRU 0C622418 330 GM 454-1982-1982-6083145 THRU 0B816540 330 GM 454-1983-1983-6083145 THRU 0B816540 330 GM 454-1984-1984-6083145 THRU 0B816540 330 GM 454-1985-1985-6083145 THRU 0B816540 330 GM 454-1986-1986-6083145 THRU 0B816540 330 GM 454-1987-1987-6083145 THRU 0B816540 340 MIE GM 454-1981-1981-5889914 THRU 0B788365 340 MIE GM 454-1982-1982-5889914 THRU 0B788365 340 MIE GM 454-1983-1983-5889914 THRU 0B788365 340 MIE GM 454-1984-1984-5889914 THRU 0B788365 340 MIE GM 454-1985-1985-5889914 THRU 0B788365 340 MIE GM 454-1986-1986-5889914 THRU 0B788365 340 MIE GM 454-1987-1987-5889914 THRU 0B788365 350 MAG ALPHA 4 BBL GM-1997-1997-0K001527 THRU 0K999999 350 MAG ALPHA 4 BBL GM-1996-1996-0F601000 THRU 0K001526 350 MAG ALPHA GM-1988-1988-0B525982 THRU 0F600999 350 MAG ALPHA GM-1989-1989-0B525982 THRU 0F600999 350 MAG ALPHA GM-1987-1987-0B525982 THRU 0F600999 350 MAG ALPHA GM-1986-1986-0A635178 THRU 0B525981 350 MAG ALPHA GM-1987-1987-0A635178 THRU 0B525981 350 MAG ALPHA GM 350-1990-1990-0B525982 THRU 0F600999 350 MAG ALPHA GM 350-1991-1991-0B525982 THRU 0F600999 350 MAG ALPHA GM 350-1992-1992-0B525982 THRU 0F600999 350 MAG ALPHA GM 350-1993-1993-0B525982 THRU 0F600999 350 MAG ALPHA GM 350-1994-1994-0B525982 THRU 0F600999 350 MAG ALPHA GM 350-1995-1995-0B525982 THRU 0F600999 350 MAG BRAVO MPI GEN + GM-1997-1997-0K001501 & UP 350 MAG MPI ALPHA/BRAVO---0L010019 THRU 0L339999 350 MAG MPI ALPHA/BRAVO---0M300000 THRU 0M599999 350 MAG MPI ALPHA/BRAVO---0M600000 THRU 0W059999 350 MAG MPI ALPHA/BRAVO---0W310000 THRU 0W649999 350 MAG MPI ALPHA/BRAVO---0W650000 THRU 1A299999 350 MAG MPI ALPHA/BRAVO---1A300000 THRU 1A611927 350 MAG MPI ALPHA/BRAVO---1A611928 THRU 1A623184 350 MAG MPI ALPHA/BRAVO---1A623185 & UP 350 MAG MPI ALPHA/BRAVO---0L331599 THRU 0M299999 350 MAG MPI ALPHA/BRAVO---0W060000 THRU 0W309999 350 MAG MPI HORIZON ALPHA/BRAVO-1998-1998-0M300000 THRU 0M599999 350 MAG MPI HORIZON ALPHA/BRAVO-1998-1998-0M600000 THRU 0W059999 350 MAG MPI HORIZON ALPHA/BRAVO-1998-1998-0W060000 THRU 0W309999 350 MAG MPI HORIZON ALPHA/BRAVO-1998-1998-0W310000 THRU 0W649999 350 MAG MPI HORIZON ALPHA/BRAVO-1998-1998-0W650000 THRU 1A299999 350 MAG MPI HORIZON MIE-1998-1998-0L302200 THRU 0M299999 350 MAG MPI HORIZON MIE-1998-1998-0M310000 THRU 0M316999 350 MAG MPI HORIZON MIE-1998-1998-0M317000 THRU 0M398371 350 MAG MPI HORIZON MIE-1998-1998-0M398372 THRU 0W389999 350 MAG MPI HORIZON MIE-1998-1998-0W390000 THRU 0W689999 350 MAG MPI HORIZON MIE-1998-1998-0W690000 THRU 1A089999 350 MAG MPI MIE---0L302200 THRU 0M299999 350 MAG MPI MIE---0M310000 THRU 0M316999 350 MAG MPI MIE---0M317000 THRU 0M398371 350 MAG MPI MIE---0M398372 THRU 0W389999 350 MAG MPI MIE---0W390000 THRU 0W689999 350 MAG MPI MIE---0W690000 THRU 1A089999 350 MAG MPI SKI (GEN+) GM 350 V-8 1998 AND UP-1998-1998-0L002600 THRU 0M310009 350 MAG. ALPHA EFI GEN+ GM-1997-1997-0K001509 & UP 350 MAG. ALPHA EFI(GEN+) GM 350 V-8-1996-1996-0F800300 THRU 0K001508 350 MAG. MPI MIE (GEN+) GM 350 V-8-1998-1998-0L002008 THRU 0L302199 357 ALPHA 4V-2008-2008-1G400000 & UP 357 ALPHA 4V-2009-2009-1G400000 & UP 357 MAG BRAVO 4V-2008-2008-1G400000 & UP 357 MAG BRAVO 4V-2009-2009-1G400000 & UP 370 TRS GM 454-1985-1985-6721528 THRU 0B714586 370 TRS GM 454-1986-1986-6721528 THRU 0B714586 370 TRS GM 454-1987-1987-6721528 THRU 0B714586 4.3L (GEN +) 2 BBL. GM-1998-1998-0L010044 THRU 0M614999 4.3L (GEN +) (4BBL) REMAN-2009-2009-1G400000 & UP 4.3L EFI (GEN+) TBI GM-1998-1998-0L012009 THRU 0L618999 4.3L EFI (GEN+) TBI GM-1998-1998-0L619000 THRU 0M322780 4.3L GEN II 2 BBL GM-1996-1996-0F601127 THRU 0F802999 4.3L MPI ALPHA/BRAVO---0W310000 THRU 0W649999 4.3L MPI ALPHA/BRAVO---0M310000 THRU 0W309999 4.3L MPI ALPHA/BRAVO---0M300000 THRU 0M614999 4.3L MPI Alpha/Bravo---0W650000 THRU 0W658582 4.3L MPI Alpha/Bravo---0W658583 THRU 0W658583 4.3L MPI Alpha/Bravo---0W658584 THRU 1A030367 4.3L MPI Alpha/Bravo---1A030368 THRU 1A030369 4.3L MPI Alpha/Bravo---1A030370 THRU 1A063239 4.3L MPI Alpha/Bravo---1A063240 & UP 4.3LH GEN + 4 BBL. GM-1998-1998-0L010044 THRU 0M614999 4.3LX (GEN +) 2 BBL. GM-1997-1997-0F803000 THRU 0K999999 4.3LX GEN II 4 BBL GM-1996-1996-0F601127 THRU 0F802999 4.3LXH GEN + 4 BBL. GM-1996-1996-0F803114 THRU 0K999999 4.3LXH GEN + 4 BBL. GM-1997-1997-0F803114

Brand

Mercury Marine

Cross Reference / Specs

MALLORY MARINE

9-61414

MERCURY MARINE

27-860232

27-818832

27-871051

27-87105

GLM

32080

BARR MARINE

MC47-27-87105

PRO MARINE

863726

OSCO

8503-GO

SIERRA

18-2849

USED ON

200 2 BBL GM 305-1987-1987-0B525982 THRU 0B774444

200 2 BBL GM 305-1985-1985-6218462 THRU 0B525981

200 2 BBL GM 305-1986-1986-6218462 THRU 0B525981

228 4 BBL. GM-1982-1982-6218462 THRU 0B525981

228 4 BBL. GM-1983-1983-6218462 THRU 0B525981

228 4 BBL. GM-1984-1984-6218462 THRU 0B525981

230 4 BBL GM 305-1987-1987-0B525982 THRU 0B773739

230 4 BBL GM 305-1985-1985-6218462 THRU 0B525981

230 4 BBL GM 305-1986-1986-6218462 THRU 0B525981

230 MIE 4 BBL GM 305-1981-1981-5907058 THRU 0B522505

230 MIE 4 BBL GM 305-1982-1982-5907058 THRU 0B522505

230 MIE 4 BBL GM 305-1983-1983-5907058 THRU 0B522505

230 MIE 4 BBL GM 305-1984-1984-5907058 THRU 0B522505

230 MIE 4 BBL GM 305-1985-1985-5907058 THRU 0B522505

230 MIE 4 BBL GM 305-1986-1986-5907058 THRU 0B522505

230 MIE 4 BBL GM 305-1987-1987-0B522506 THRU 0B788151

230 MIE 4 BBL GM 305-1988-1988-0B522506 THRU 0B788151

230 MIE 4 BBL GM 305-1989-1989-0B522506 THRU 0B788151

230 MIE 4 BBL GM 305-1990-1990-0B522506 THRU 0B788151

230 MIE 4 BBL GM 305-1991-1991-0B522506 THRU 0B788151

230 MIE 4 BBL GM 305-1992-1992-0B522506 THRU 0B788151

230 MIE 4 BBL GM 305-1993-1993-0B522506 THRU 0B788151

230 MIE 4 BBL GM 305-1994-1994-0B522506 THRU 0B788151

230 MIE 4 BBL GM 305-1995-1995-0B522506 THRU 0B788151

260 4 BBL GM-1987-1987-0B525982 THRU 0B773739

260 4 BBL GM-1982-1982-6218462 THRU 0B525981

260 4 BBL GM-1983-1983-6218462 THRU 0B525981

260 4 BBL GM-1984-1984-6218462 THRU 0B525981

260 4 BBL GM-1985-1985-6218462 THRU 0B525981

260 4 BBL GM-1986-1986-6218462 THRU 0B525981

260 GM 350-1987-1987-0B525982 THRU 0B773304

260 GM 350-1982-1982-6218462 THRU 0B525981

260 GM 350-1983-1983-6218462 THRU 0B525981

260 GM 350-1984-1984-6218462 THRU 0B525981

260 GM 350-1985-1985-6218462 THRU 0B525981

260 GM 350-1986-1986-6218462 THRU 0B525981

260 MIE GM-1987-1987-0B522506 THRU 0B788196

260 MIE GM 350-1981-1981-5907058 THRU 0B522505

260 MIE GM 350-1982-1982-5907058 THRU 0B522505

260 MIE GM 350-1983-1983-5907058 THRU 0B522505

260 MIE GM 350-1984-1984-5907058 THRU 0B522505

260 MIE GM 350-1985-1985-5907058 THRU 0B522505

260 MIE GM 350-1986-1986-5907058 THRU 0B522505

262 MAG TBI GEN+-1996-1996-0F803800 THRU 0K999999

262 MAG TBI GEN+-1997-1997-0F803800 THRU 0K999999

300 TEMPEST GM-1985-1985-6668677 THRU 0B430367

300 TEMPEST GM-1986-1986-6668677 THRU 0B430367

320 EFI GM-1987-1987-0A543604 THRU 0B157602

320 EFI GM-1988-1988-0B157603 THRU 0C622418

320 EFI GM-1989-1989-0B157603 THRU 0C622418

330 GM 454-1982-1982-6083145 THRU 0B816540

330 GM 454-1983-1983-6083145 THRU 0B816540

330 GM 454-1984-1984-6083145 THRU 0B816540

330 GM 454-1985-1985-6083145 THRU 0B816540

330 GM 454-1986-1986-6083145 THRU 0B816540

330 GM 454-1987-1987-6083145 THRU 0B816540

340 MIE GM 454-1981-1981-5889914 THRU 0B788365

340 MIE GM 454-1982-1982-5889914 THRU 0B788365

340 MIE GM 454-1983-1983-5889914 THRU 0B788365

340 MIE GM 454-1984-1984-5889914 THRU 0B788365

340 MIE GM 454-1985-1985-5889914 THRU 0B788365

340 MIE GM 454-1986-1986-5889914 THRU 0B788365

340 MIE GM 454-1987-1987-5889914 THRU 0B788365

350 MAG ALPHA 4 BBL GM-1997-1997-0K001527 THRU 0K999999

350 MAG ALPHA 4 BBL GM-1996-1996-0F601000 THRU 0K001526

350 MAG ALPHA GM-1988-1988-0B525982 THRU 0F600999

350 MAG ALPHA GM-1989-1989-0B525982 THRU 0F600999

350 MAG ALPHA GM-1987-1987-0B525982 THRU 0F600999

350 MAG ALPHA GM-1986-1986-0A635178 THRU 0B525981

350 MAG ALPHA GM-1987-1987-0A635178 THRU 0B525981

350 MAG ALPHA GM 350-1990-1990-0B525982 THRU 0F600999

350 MAG ALPHA GM 350-1991-1991-0B525982 THRU 0F600999

350 MAG ALPHA GM 350-1992-1992-0B525982 THRU 0F600999

350 MAG ALPHA GM 350-1993-1993-0B525982 THRU 0F600999

350 MAG ALPHA GM 350-1994-1994-0B525982 THRU 0F600999

350 MAG ALPHA GM 350-1995-1995-0B525982 THRU 0F600999

350 MAG BRAVO MPI GEN + GM-1997-1997-0K001501 & UP

350 MAG MPI ALPHA/BRAVO---0L010019 THRU 0L339999

350 MAG MPI ALPHA/BRAVO---0M300000 THRU 0M599999

350 MAG MPI ALPHA/BRAVO---0M600000 THRU 0W059999

350 MAG MPI ALPHA/BRAVO---0W310000 THRU 0W649999

350 MAG MPI ALPHA/BRAVO---0W650000 THRU 1A299999

350 MAG MPI ALPHA/BRAVO---1A300000 THRU 1A611927

350 MAG MPI ALPHA/BRAVO---1A611928 THRU 1A623184

350 MAG MPI ALPHA/BRAVO---1A623185 & UP

350 MAG MPI ALPHA/BRAVO---0L331599 THRU 0M299999

350 MAG MPI ALPHA/BRAVO---0W060000 THRU 0W309999

350 MAG MPI HORIZON ALPHA/BRAVO-1998-1998-0M300000 THRU 0M599999

350 MAG MPI HORIZON ALPHA/BRAVO-1998-1998-0M600000 THRU 0W059999

350 MAG MPI HORIZON ALPHA/BRAVO-1998-1998-0W060000 THRU 0W309999

350 MAG MPI HORIZON ALPHA/BRAVO-1998-1998-0W310000 THRU 0W649999

350 MAG MPI HORIZON ALPHA/BRAVO-1998-1998-0W650000 THRU 1A299999

350 MAG MPI HORIZON MIE-1998-1998-0L302200 THRU 0M299999

350 MAG MPI HORIZON MIE-1998-1998-0M310000 THRU 0M316999

350 MAG MPI HORIZON MIE-1998-1998-0M317000 THRU 0M398371

350 MAG MPI HORIZON MIE-1998-1998-0M398372 THRU 0W389999

350 MAG MPI HORIZON MIE-1998-1998-0W390000 THRU 0W689999

350 MAG MPI HORIZON MIE-1998-1998-0W690000 THRU 1A089999

350 MAG MPI MIE---0L302200 THRU 0M299999

350 MAG MPI MIE---0M310000 THRU 0M316999

350 MAG MPI MIE---0M317000 THRU 0M398371

350 MAG MPI MIE---0M398372 THRU 0W389999

350 MAG MPI MIE---0W390000 THRU 0W689999

350 MAG MPI MIE---0W690000 THRU 1A089999

350 MAG MPI SKI (GEN+) GM 350 V-8 1998 AND UP-1998-1998-0L002600 THRU 0M310009

350 MAG. ALPHA EFI GEN+ GM-1997-1997-0K001509 & UP

350 MAG. ALPHA EFI(GEN+) GM 350 V-8-1996-1996-0F800300 THRU 0K001508

350 MAG. MPI MIE (GEN+) GM 350 V-8-1998-1998-0L002008 THRU 0L302199

357 ALPHA 4V-2008-2008-1G400000 & UP

357 ALPHA 4V-2009-2009-1G400000 & UP

357 MAG BRAVO 4V-2008-2008-1G400000 & UP

357 MAG BRAVO 4V-2009-2009-1G400000 & UP

370 TRS GM 454-1985-1985-6721528 THRU 0B714586

370 TRS GM 454-1986-1986-6721528 THRU 0B714586

370 TRS GM 454-1987-1987-6721528 THRU 0B714586

4.3L (GEN +) 2 BBL. GM-1998-1998-0L010044 THRU 0M614999

4.3L (GEN +) (4BBL) REMAN-2009-2009-1G400000 & UP

4.3L EFI (GEN+) TBI GM-1998-1998-0L012009 THRU 0L618999

4.3L EFI (GEN+) TBI GM-1998-1998-0L619000 THRU 0M322780

4.3L GEN II 2 BBL GM-1996-1996-0F601127 THRU 0F802999

4.3L MPI ALPHA/BRAVO---0W310000 THRU 0W649999

4.3L MPI ALPHA/BRAVO---0M310000 THRU 0W309999

4.3L MPI ALPHA/BRAVO---0M300000 THRU 0M614999

4.3L MPI Alpha/Bravo---0W650000 THRU 0W658582

4.3L MPI Alpha/Bravo---0W658583 THRU 0W658583

4.3L MPI Alpha/Bravo---0W658584 THRU 1A030367

4.3L MPI Alpha/Bravo---1A030368 THRU 1A030369

4.3L MPI Alpha/Bravo---1A030370 THRU 1A063239

4.3L MPI Alpha/Bravo---1A063240 & UP

4.3LH GEN + 4 BBL. GM-1998-1998-0L010044 THRU 0M614999

4.3LX (GEN +) 2 BBL. GM-1997-1997-0F803000 THRU 0K999999

4.3LX GEN II 4 BBL GM-1996-1996-0F601127 THRU 0F802999

4.3LXH GEN + 4 BBL. GM-1996-1996-0F803114 THRU 0K999999

4.3LXH GEN + 4 BBL. GM-1997-1997-0F803114
