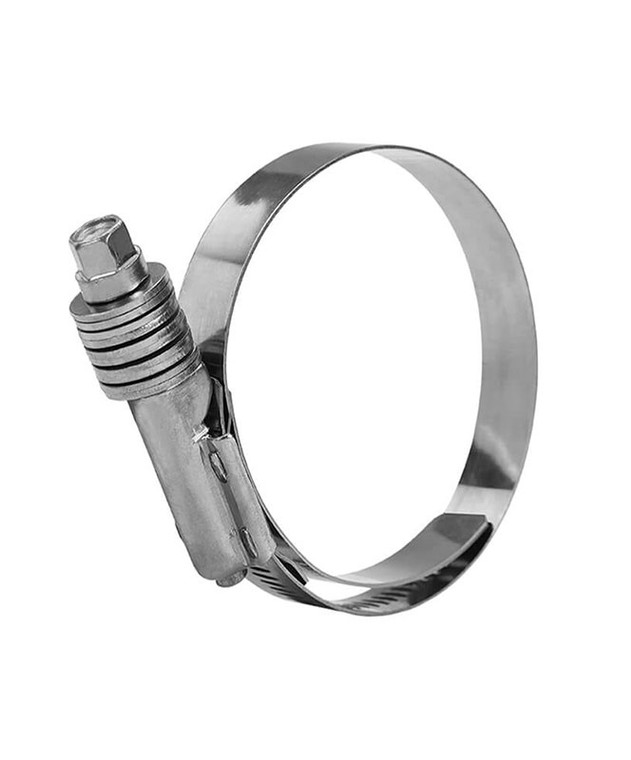

Midland Metals Manufacturing 842016 Constant Torque Hose 13/16" - 1-1/2" Clamp
Midland Metals Manufacturing 842016 Constant Torque Hose 13/16" - 1-1/2" Clamp.
To eliminate leaks by automatically incerasing or decreasing the clamps diameter, decreasing the need for retightening. Constant torque clamps have an extended tail on the band to protect soft hose or tube from being cut.
Constant torque clamps are an excellent choice for fluctuating and extreme temperature applications and thermal compensation.
Features:
Clamping Range: 13/16" - 1-1/2"
Band Width: 9/16"
Screw Size: 5/16"
Torque: 72 in-lb
Band material: 304 stainless
Housing: 304 stainless steel
Bridge: 410 stainless steel
Hex screw: 410 stainless steel
All designs meet SAE J1508 specifications type "SLHD"
Band material: 304 thickness
To eliminate leaks by automatically incerasing or decreasing the clamps diameter, decreasing the need for retightening. Constant torque clamps have an extended tail on the band to protect soft hose or tube from being cut.
Constant torque clamps are an excellent choice for fluctuating and extreme temperature applications and thermal compensation.
Features:
| Brand | Midland Metals Manufacturing |
|---|---|
| Cross Reference / Specs |
