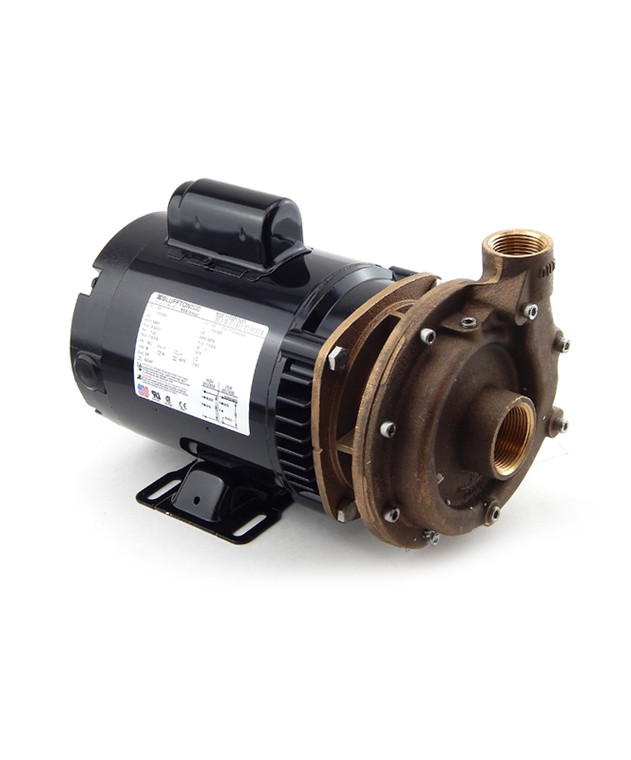

Oberdorfer 109MB-10J36BJ-50/60-316SS Centrifugal Pump
Oberdorfer 109MB-10J36BJ-50/60-316SS Centrifugal Pump.
Features:
Motor 1/2-HP
Pump Body: Bronze
Inlet Port: 1-1/4" NPT
Outlet Port: 1" NPT
Flow: 80 GPM Max
Pressure: 19 PSI, 45 feet of head
Impeller: Centrifugal
Shaft Seal: Teflon Barrier Seal to Protect Motor Bearings. Carbon Face Mechanical Pump Seals.
Shaft: 316 Stainless Steel.
Motor/Drive: Pump heads mount to standard footed NEMA 56J jet pump motors.
Limited warranty: 6-month limited warranty for pleasurecraft use and 3-month limited warranty for commercial use.
Drive
This close-coupled pump uses a standard NEMA C-Flange Jet Pump Motor with weld-on base and threaded shaft end to accept the pump impeller. Single phase motors are nonreversible and are wired for the proper pump rotation which is counter-clockwise looking at the inlet end of the pump. (See the dimensional drawing.) Three phase motors must be checked out for proper rotation when the pump is installed. Interchanging of any 2 wires in a 3-phase system will reverse motor rotation.
Liquids and Temperatures
The special pump alloys used provide corrosion resistance to many liquids including water, water solutions, and a wide range of commercial chemicals. Questions as to the chemical compatibility of special liquids should be referred to the factory.
The pump uses a mechanical type shaft seal with a Nitrile rubber element. It is suitable for water, oils, and some mild solvents and it is limited to 212oF and 75 P.S.I. Fluoroelastomer (S10) seals and Polytetrafluoroethylene (PTFE) (S11) seals are available for severe solvents and difficult chemicals.
Viscous liquids with a maximum viscosity of 2000 Saybolt Seconds Universal can be pumped. However, when pumping viscous liquids as compared with water, a reduction in flow and pressure occurs and the required horsepower rate increases.
Liquids heavier than water require additional horsepower in direct proportion to the increase in specific gravity. Liquids contaminated with small solids or abrasives can be handled, but a reduction in mechanical seal life must be expected.
Suction Lift
These centrifugal pumps are not self-priming. They must be installed below the liquid level so that the liquid flows to the pump by gravity (flooded suction). However, if a foot valve is used at the beginning of the suction line and all air is bled from the pump by manual priming, the pump will lift on the suction side up to 15 feet. Such a system relies entirely on a non-leaking foot valve for starting capability.
Features:
Drive
This close-coupled pump uses a standard NEMA C-Flange Jet Pump Motor with weld-on base and threaded shaft end to accept the pump impeller. Single phase motors are nonreversible and are wired for the proper pump rotation which is counter-clockwise looking at the inlet end of the pump. (See the dimensional drawing.) Three phase motors must be checked out for proper rotation when the pump is installed. Interchanging of any 2 wires in a 3-phase system will reverse motor rotation.
Liquids and Temperatures
The special pump alloys used provide corrosion resistance to many liquids including water, water solutions, and a wide range of commercial chemicals. Questions as to the chemical compatibility of special liquids should be referred to the factory.
The pump uses a mechanical type shaft seal with a Nitrile rubber element. It is suitable for water, oils, and some mild solvents and it is limited to 212oF and 75 P.S.I. Fluoroelastomer (S10) seals and Polytetrafluoroethylene (PTFE) (S11) seals are available for severe solvents and difficult chemicals.
Viscous liquids with a maximum viscosity of 2000 Saybolt Seconds Universal can be pumped. However, when pumping viscous liquids as compared with water, a reduction in flow and pressure occurs and the required horsepower rate increases.
Liquids heavier than water require additional horsepower in direct proportion to the increase in specific gravity. Liquids contaminated with small solids or abrasives can be handled, but a reduction in mechanical seal life must be expected.
Suction Lift
These centrifugal pumps are not self-priming. They must be installed below the liquid level so that the liquid flows to the pump by gravity (flooded suction). However, if a foot valve is used at the beginning of the suction line and all air is bled from the pump by manual priming, the pump will lift on the suction side up to 15 feet. Such a system relies entirely on a non-leaking foot valve for starting capability.
| Brand | Oberdorfer |
|---|---|
| Cross Reference / Specs |
