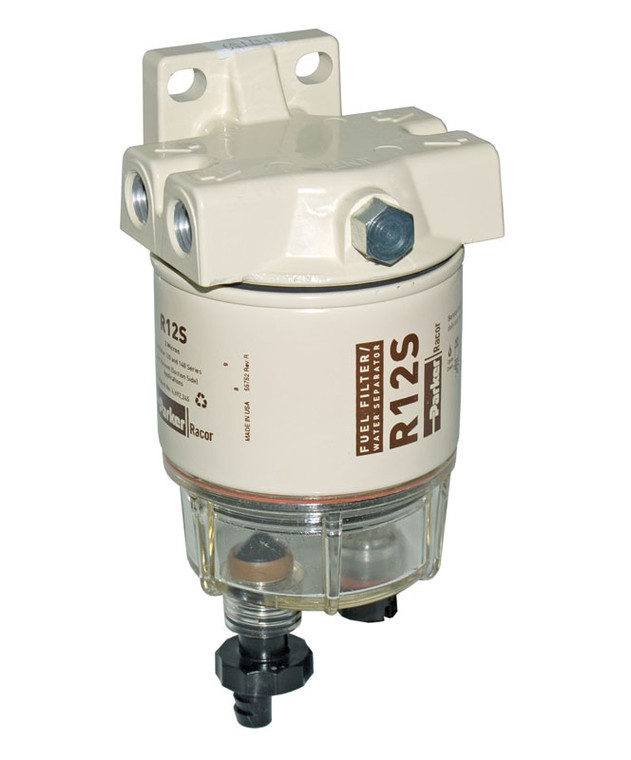

Racor 120AS Fuel Filter Water Separator

SKU:
RAC120AS
|
MPN
120AS
|
UPC:
706672000231
$114.99 - $655.49
Current Stock:
Adding to cart… The item has been added
Racor 120AS Fuel Filter Water Separator.

120AS fuel filter/water separators are designed to be installed on the suction side of the fuel system with maximum flow capacities of 15 gallons per hour (GPH). The compact size and 4-port versatility make the 120 series a very popular small filter for many applications. Servicing is simplified by the self-venting bowl drain and spin-on filter.

Features:
  • Includes RK 10215 Plastic Bowl w/ water Probe port

  • Removes 99 percent of free water

  • Includes 2 micron Aquabloc®II element

  • 4-port, with 1/4”-18 NPTF threads

  • Die-cast aluminum mounting head

  • Filters gasoline, diesel, and gasoline/oil blended fuels


  • The lower the micron rating, the finer the filtration. Follow your engine manufacturer's recommendation for fuel filter micron rating.

  • S = Secondary/Final 2 micron (Brown)

  • T = Primary or Secondary/Final 10 micron (Blue)

  • P = Primary 30 micron (Red)
  • Brand Racor
    Cross Reference / Specs


  • Maximum Flow Rate: 15 GPH (57 LPH)
  • Port Size (SAE J476): 1/4"-18 NPTF
  • Replacement Elements: 2 micron = R12S
  • Replacement Elements: 10 micron = R12T
  • Replacement Elements: 30 micron = R12P
  • Replacement Bowl: RK 10222 - Plastic
  • Replacement Bowl: RK 10553 - Metal
  • Replacement Bowl: RK 10109 - Metal w/ Water probe port
  • Replacement Bowl: RK 10215 - Plastic w/ Water probe port
  • Min. Service Clearance: 2 in. (0.51 cm)
  • Center Threads: M18 X 1.5
  • Height: 6.5 in. (1.66 cm)
  • Depth: 3.2 in. (0.81 cm)
  • Width: 3.2 in. (0.81 cm)
  • Weight: (dry) 1.1 lb (0.5 kg)
  • Clean Element Pressure Drop: 0.15 PSI (0.01 bar)
  • Maximum Allowable Pressure: 7 PSI (0.48 bar)
  • Water in Bowl Capacity: 1.76 oz. (52 ml)
  • Ambient Temp. Range: -40° to +255°F
  • Max. Fuel Temp.: 190°F (32°C)
