Racor 490R-RAC-01 Spin-on Fuel Filter Water Separator with Integral Primer Pump

SKU:
RAC490R-RAC-01
|
MPN
490R-RAC-01
|
UPC:
706672014153
$132.99 - $1,516.09
Current Stock:
Adding to cart… The item has been added

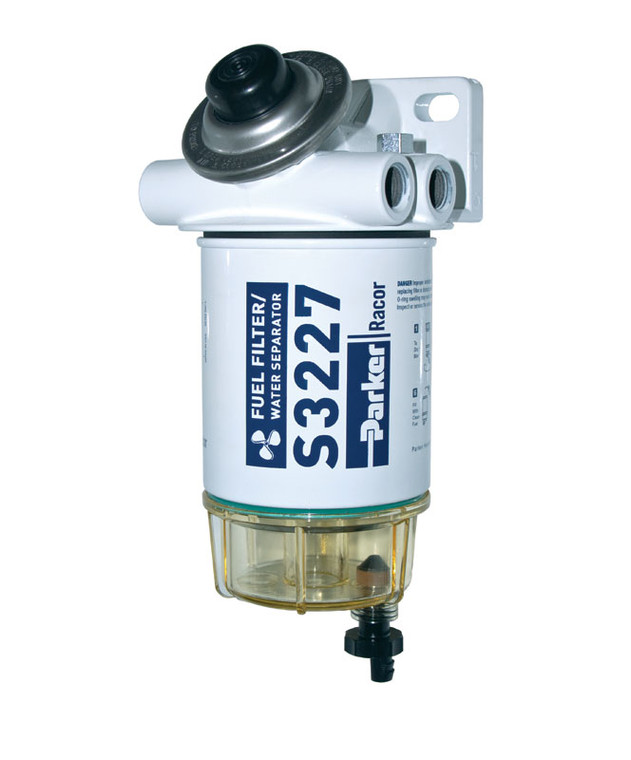

Racor 490R-RAC-01 Spin-on Fuel Filter Water Separator with Integral Primer Pump.

The 490R-RAC-01 is designed for high performance applications and with a flow rate up to 90 GPH (340 LPH), your engine will perform better than ever with clean, water-free fuel. Its hand operated fuel priming pump simplifies servicing procedures and yields extremely low flow resistance due to its unique pump bypass characteristic.

Features:
  • Meets ABYC standards for outboard powered vessels

  • Includes 10 micron Aquabloc®II element - S3227

  • Filters gasoline fuels

  • Ethanol E10 compatible

  • Easy to service

  • Removes 99% of free water

  • Corrosion resistant

  • Rugged and reliable

  • **NOTE Important Note: Not intended for inboard powered vessels**


  • The lower the micron rating, the finer the filtration. Follow your engine manufacturer's recommendation for fuel filter micron rating.

  • S = Secondary/Final 2 micron (Brown)

  • T = Primary or Secondary/Final 10 micron (Blue)

  • P = Primary 30 micron (Red)
  • Brand Racor
    Cross Reference / Specs


  • Application: Outboard
  • Maximum Flow Rate:90 GPH (340 LPH)

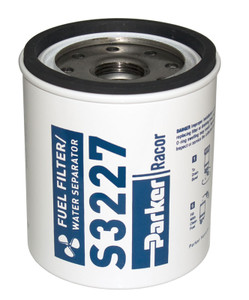

  • Replacement Filter: 10 micron = S3227, 2 Micron = S3228SUL
  • Filters gasoline fuel
  • Center Threads: 1"-14
  • Port Size:3/8"-18 NPTF
  • Number of Ports: Inlets =2, Outlets = 2
  • Height: 9.9 in. (25.1 cm)
  • Width: 4.5 in. (11.4 cm)
  • Depth: 4.8 in. (12.1cm)
  • Weight (dry): 2.6 lb (1.2 kg)
  • Clean Pressure Drop: 0.95 PSI (6.5 kPa)
  • Maximum Pressure: 7 PSI (0.5 bar)
  • Underbowl Clearance: 1.0 in. (2.5 cm)
  • Water Removal Efficiency: 99 percent
  • Ambient Temperature Range: -40° to +255°F (-40° to +124°C)
  • Maximum Fuel Temperature: 190°F (32°C)
