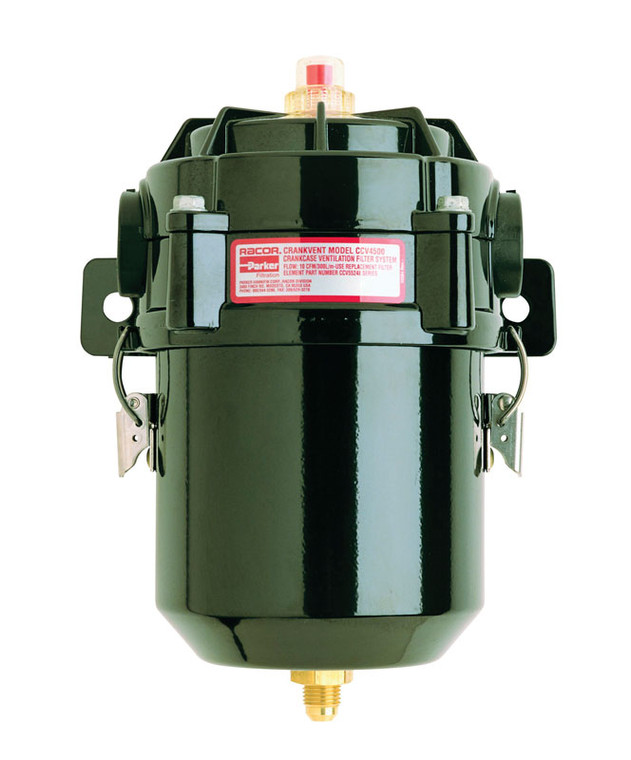

Racor CCV4500-08R Crankcase Ventilation System

SKU:
RACCCV4500-08R
|
MPN
CCV4500-08R
|
UPC:
706672009579
$290.99 - $1,105.79
Current Stock:
Adding to cart… The item has been added
Racor CCV4500-08R Crankcase Ventilation System.

Racor’s Crankcase Ventilation Systems remove oil contamination from engine by-pass gasses before they can do damage. They prevent fouling of the turbocharger and after-cooler and keep surrounding equipment and walls clean.

Marine diesel engines can benefit from the installation of a combination Racor Closed Crankcase Ventilation (CCV) and Air filter/Silencer System. The CCV contains Racor’s high-performance Vaporbloc™ filter made of depth loading micro glass fiber coalescing media. The marine Air Filter/ Silencers (AF) contain a washable media and are ruggedly built to provide an extended service life

Features:
  • Inlet Location: Right

  • Port Thread Size: 1-3/16"-12 UN-2B SAE O-Ring

  • Includes High Replacement Element - CCV55248-08

  • Includes 3' (36") CCV836-6 "Blue" Push-Lok Plus 400 PSI 3/8" I.D.High tempature Hose

  • Includes (2) 3/8" Hose Barb to 9/16-18 37° Flare Push-Lok fittings and (1) CCV55279 1/4" NPT to 9/16-18 37° Check Valve for engine block

  • Type/Configuration: Closed System

  • Maximum Flow Rate (cfm): 10

  • Maximum Horsepower (hp): 400

  • Function: Bypass Assembly

  • Filtration Ratings: High
    • Brand Racor
    Cross Reference / Specs

  • Series Type: Cartridge Crankcase Ventilation
  • Series: CCV4500
  • Filtered Medium: Engine Blowby Gas
  • Maximum Flow Rate (m3/m): 0.28
  • Replacement Element: Low = CCV55248-04, High = CCV55248-08, Ultra = CCV55248-10
  • Port Size: 1-3/16", 12 SAE
  • Drain: 1/4" NPT (Engine block check valve fitting)
  • Connection Style: #6 JIC x 2 (Swivel Fittings)
  • Hose I.D.: 3/8" (3 ft)
  • Maximum Kilowatt (kW): 300
  • Material: Die cast head, glass filled nylon and black powder epoxy-coated steel bowl
  • Weight (lbs): 3.3
  • Weight (kg): 1.5
  • Indicator Type: Bypass/Change Indicator
  • Pressure Regulator Type: Integral crankcase pressure regulator
  • Width: 7.2 inches (18.3 cm)
  • Depth: 5.6 inches (14.2 cm)
  • Height: 9.3 inches (23.6 cm)

    • USE WITH:

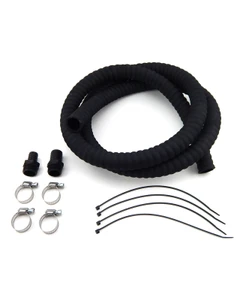

  • CCV55024 - 3/4" to 1" Install Kit
  • CCV55025 - 1" to 1-" Install Kit
  • CCV55037 - 1" to 1-1/4" Install Kit
  • CCV55250 - 1" Hose Barb Fitting
  • CCV55251 - 3/4" Hose Barb Fitting
  • CCV55280 - 1-1/4" Hose Barb Fitting
  • CCV55547-02 - 90° Fitting
    		•
