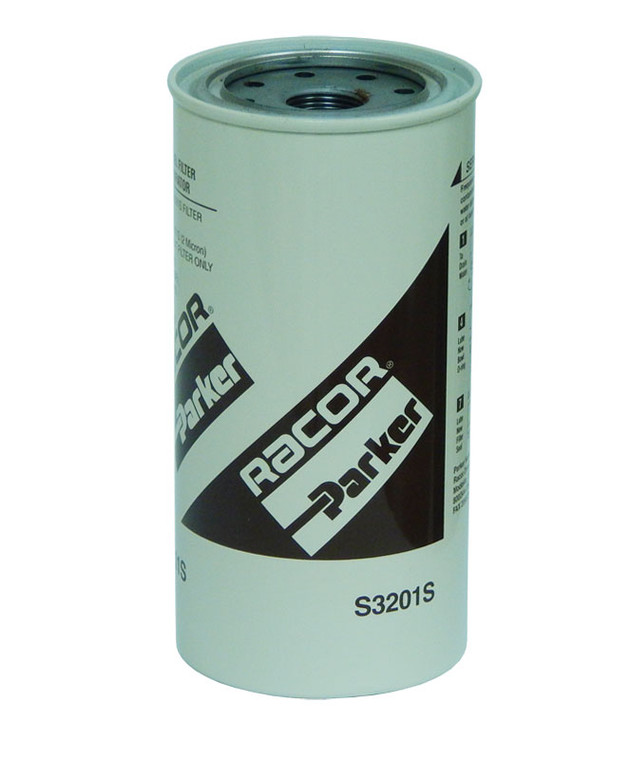

Racor S3201S Fuel Filter Water Separator

SKU:
RACS3201S
|
MPN
S3201S
|
UPC:
706672001351
$38.99 - $444.49
Current Stock:
Adding to cart… The item has been added
Racor S3201S Fuel Filter Water Separator.

Racor quality in one easy spin! The assembly element is designed to directly replace existing engine fuel filters.

Features:
  • Fits Racor Bowl - B32001S, RK 30475, RK 30051, RK 30895, RK 30924, RK 30745-01

  • Micron Rating: 2 micron

  • Includes Upper & Lower gasket - 30562

  • Filters diesel fuels

  • Maximum Fow Rate: 90 GPH (341 LPH)

  • 99% efficient Aquabloc® water repelling filter media


  • The lower the micron rating, the finer the filtration. Follow your engine manufacturer's recommendation for fuel filter micron rating.

  • S = Secondary/Final 2 micron (Brown)

  • T = Primary or Secondary/Final 10 micron (Blue)

  • P = Primary 30 micron (Red)
  • Brand Racor
    Cross Reference / Specs AC-DELCO
  • TP1001F
  • TP3009
  • PF2101
  • PF2101F
  • PF879

  • BALDWIN
  • BF1259-W
  • BF5801
  • BF1212
  • BF1249
  • BF1252
  • BK6227
  • BK6247
  • BK6435
  • FB1311

  • BIG A
  • 95405
  • 95415
  • 95431

  • CARQUEST
  • 86405
  • 86431
  • 86441

  • CATERPILLAR
  • 198-6378
  • 202-9902
  • 1R-0716

  • CUMMINS
  • 3308638

  • DONALDSON
  • FFP555001
  • FFP555010
  • FFP558000
  • FFP558600
  • P559047
  • P559049

  • FLEETGUARD
  • FS1015
  • FS1015B
  • FS1242B
  • FS1212
  • FS1242
  • LF691
  • LF691A
  • LF9691A

  • FORD
  • FL 326

  • FRAM
  • PCS5059
  • PS10713
  • PS3712
  • PH3335

  • GENERAL MOTORS
  • 15587139
  • 19236636
  • 25011689
  • 6439658

  • HASTINGS
  • FF863
  • FF866

  • KENWORTH
  • KW1212
  • PS1212

  • MOTORCRAFT
  • FD 813
  • FD 816

  • NAPA
  • 3405
  • 3431

  • PUROLATOR
  • F60024
  • K50010
  • L60069
  • L65236
  • L65969

  • WESTERN STAR
  • 17001-3444

  • WIX
  • 33405MP
  • 33405
  • 33621
  • 33242
  • 51792
  • 51792EC
  • 51792MP
  • 51792XD



  • Application: Inboard
  • Maximum Flow Rate: 90 GPH (341 LPH)
  • Micron Rating: 2
  • Replacement Bowl: B32001S, RK 30475, RK 30051, RK 30895, RK 30924, RK 30745-01
  • Height: 7.4 in. (18.8 cm)
  • Diameter: 3.8 in. (9.7 cm)
  • Center Threads: 1"-14
  • Water Removal Efficiency: 99%
  • Ambient Temperature Range: -40° to +250°F (-40° to +121°C)
  • Maximum Fuel Temperature: 190°F (32°C)
