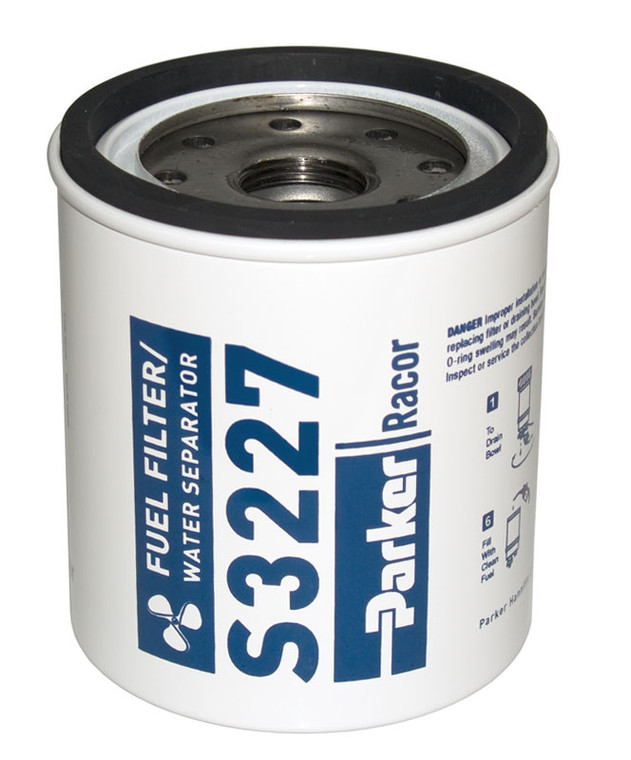

Racor S3227 Fuel Filter Water Separator

SKU:
RACS3227
|
MPN
S3227
|
UPC:
706672020048
$30.99 - $353.29
Current Stock:
Adding to cart… The item has been added
Racor S3227 Fuel Filter Water Separator.

Racor quality in one easy spin! The S3227 element is designed to directly replace existing engine fuel filters.

Features:
  • Fits Racor Series - 320R-RAC-01, 490R-RAC-01

  • Fits Racor Clear Bowl - RK 30475

  • Micron rating: 10 micron

  • Includes Upper, Lower, and thread gasket kit - 33550-1

  • Filters gasoline fuel

  • Maximum Fow Rate: 60 GPH (227 LPH)

  • High-capacity Aquabloc®II paper media that removes contaminates and water


  • NON UL RATED, FOR UL RATED USE S3288TUL

    The lower the micron rating, the finer the filtration. Follow your engine manufacturer's recommendation for fuel filter micron rating.

  • S = Secondary/Final 2 micron (Brown)

  • T = Primary or Secondary/Final 10 micron (Blue)

  • P = Primary 30 micron (Red)
  • Brand Racor
    Cross Reference / Specs BALDWIN
  • BF46028-O
  • BF46029-O

  • EMP-ENGINEERED MARINE PRODUCTS
  • 35-37810

  • HONDA
  • 17670-ZW1-801AH

  • MALLORY MARINE
  • 9-37810

  • MERCURY MARINE
  • 35-886638
  • 35-8M0103096
  • 35-8M0146206
  • 8M0154764

  • PLEASURECRAFT MARINE
  • R080020

  • RACOR
  • S3227
  • S3227TUL
  • S3228TUL
  • S3228SUL

  • SIERRA MARINE
  • 18-7948

  • SUZUKI
  • 99105-2004
  • 99105-20005



  • Application: Inboard
  • Fits Racor Series: 320R-RAC-01, 490R-RAC-01
  • Replacement Bowl: RK 30475
  • Filters Gasoline fuel
  • Maximum Flow Rate: 60 GPH (227 LPH)
  • Micron Rating: 10
  • Maximum Working Pressure: 7.0 PSI (0.5 bar)
  • Height: 4 in. (10.2 cm)
  • Diameter: 3.8 in. (9.7 cm)
  • Center Threads: 1"-14
  • Includes Upper & Lower gasket - 33550-01
  • Water Removal Efficiency: 99%
  • Operating Temperature -40o to +255oF (-40o to 124oC)
  • Max. Fuel Temp.: 190°F (32°C)
  • Prop65
