Racor S3240TUL Fuel Filter Water Separator

SKU:
RACS3240TUL
|
MPN
S3240TUL
|
UPC:
706672016706
$30.99 - $353.29
Current Stock:
Adding to cart… The item has been added

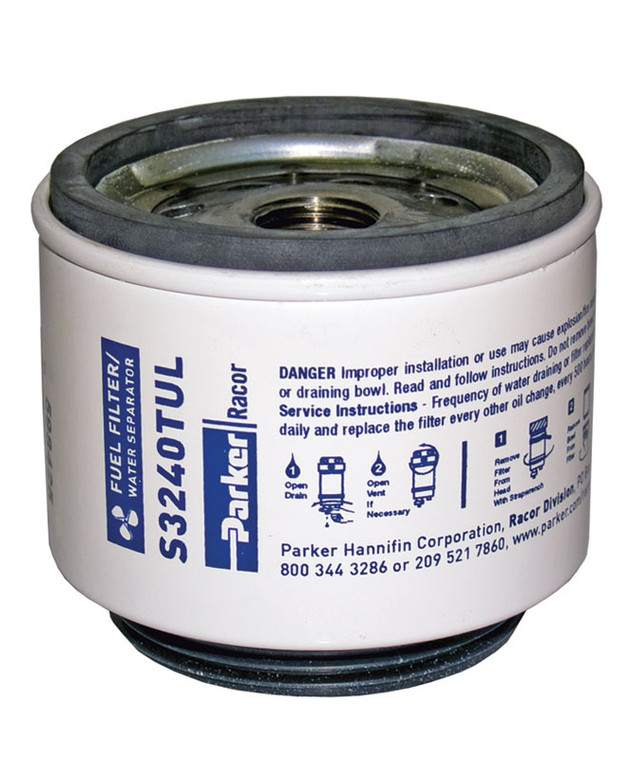

Racor S3240TUL Fuel Filter Water Separator.

Racor quality in one easy spin! The S3240TUL element is designed to directly replace existing engine fuel filters.

Features:
  • Fits Racor Series - 120R-RAC-01, 120R-RAC-02

  • Fits Racor White Metal Bowl - RK 10553

  • Fits Racor Clear Plastic Bowl - RK 10222

  • Micron rating: 10 micron

  • Includes Upper gasket kit - RK 10503 and Lower gasket kit - RK 10012

  • Filters gasoline fuel

  • Maximum Fow Rate: 30 GPH (114 LPH)

  • High-capacity Aquabloc®II paper media that removes contaminates and water

  • UL LISTED


  • The lower the micron rating, the finer the filtration. Follow your engine manufacturer's recommendation for fuel filter micron rating.

  • S = Secondary/Final 2 micron (Brown)

  • T = Primary or Secondary/Final 10 micron (Blue)

  • P = Primary 30 micron (Red)
  • Brand Racor
    Cross Reference / Specs RACOR
  • S3240

  • HONDA MARINE
  • 17670-ZW1-030GH

  • MALLORY MARINE
  • 9-37812

  • SUZUKI MARINE
  • 99105-20006

  • SIERRA MARINE
  • 18-7947



  • Application: Outboard/Inboard
  • Fits Racor Series: 120R-RAC-01, 120R-RAC-02
  • Replacement Bowl: RK 10222 - Plastic
  • Replacement Bowl: RK 10553 - Metal
  • Replacement Bowl: RK 10109 - Metal w/ Water probe port
  • Replacement Bowl: RK 10215 - Plastic w/ Water probe port
  • Filters Gasoline fuel
  • Maximum Flow Rate: 30 GPH (114 LPH)
  • Micron Rating: 10
  • Maximum Working Pressure: 7.0 PSI (0.5 bar)
  • Height: 2.5 in. (6.35 cm)
  • Diameter: 3 in. (7.62 cm)
  • Center Threads: M18 x 1.5
  • Includes Upper gasket kit - RK 10503 and Lower gasket kit - RK 10012
  • Water Removal Efficiency: 99%
  • Operating Temperature -40o to +255oF (-40o to 124oC)
  • Max. Fuel Temp.: 190°F (32°C)
  • Prop65

    PROPOSITION 65 WARNING: FOR MORE INFORMATION, VISIT WWW.P65WARNINGS.CA.GOV
