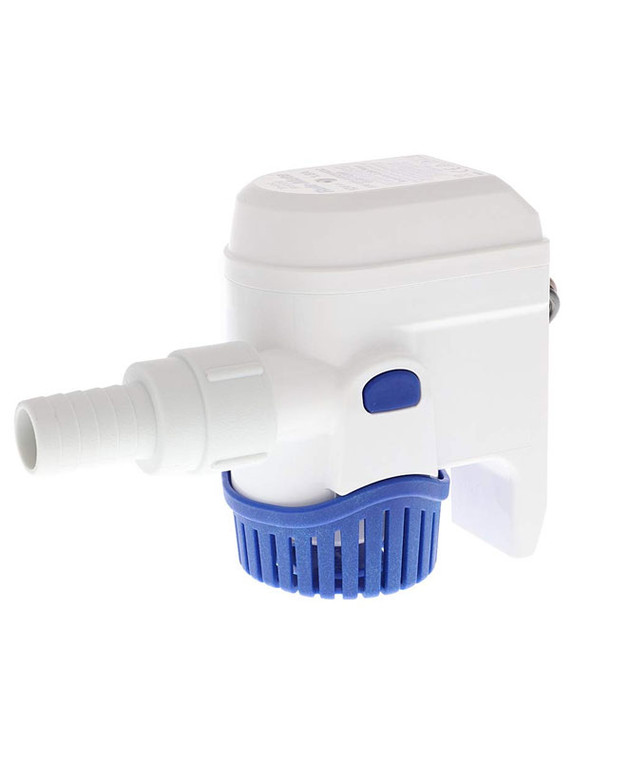

Rule RM500B Rule-Mate Fully Automated Bilge Pump

Rule RM500B Rule-Mate Fully Automated Bilge Pump-500gph

The RULE INDUSTRIES 500 GPH Automatic Bilge Pump provides ultimate pumping performance, which helps keep your bilge clear of nuisance water, building on the genuine Rule design. The new RuleMate bilge pumps operate using an internal level sensor. When water reaches 2" (5cm), the pump will automatically activate, removing water from the bilge. When the water level reaches 3/8" (0.9cm) the pump will turn off until the water level rises again.

Bilges are not always clean and free from debris. If the level sensor becomes fouled by debris or contaminated water, RuleMate’s unique back up feature will prevent the pump from entering a run-on condition, protecting the battery while maintaining automatic operation.

Features:

GPH: 500

Output: 7 Gallons/Minute

Volt: 12 DC

Amp Draw: 1.8 @ max flow

Fuse Size: 4A (not included)

Port Size: 3/4" NPSM, 3/4" Hose Barb

Height: 4.4"

Width: 3.5" (not including discharge)

Depth: 2.9"

Footprint: 2.5" x 2.25" oval

Higher Flow — optimized impeller to provideup to 10% more flow at the same amperage

Auto Sense Intelligence — integral water level sensor controls the pump automatically

Back Up Feature — prevents continuous running if sensor is fouled by debris, pump reverts to 2.5 minute cycle mode

Smaller Footprint — new RuleMate is 2/3 the size of existing model

Built-In Thermal Cut-Off (TCO) — provides added protection for pump and vessel

Back Flow Prevention — reduces the amount of water left over in the bilge, reducing odor and helping keep your bilge cleaner

Hidden Air Vents in the Body — helps prevent air locking in challenging plumbing installations and helps with the check valve

Threaded Discharge — easier installation, easier maintenance
