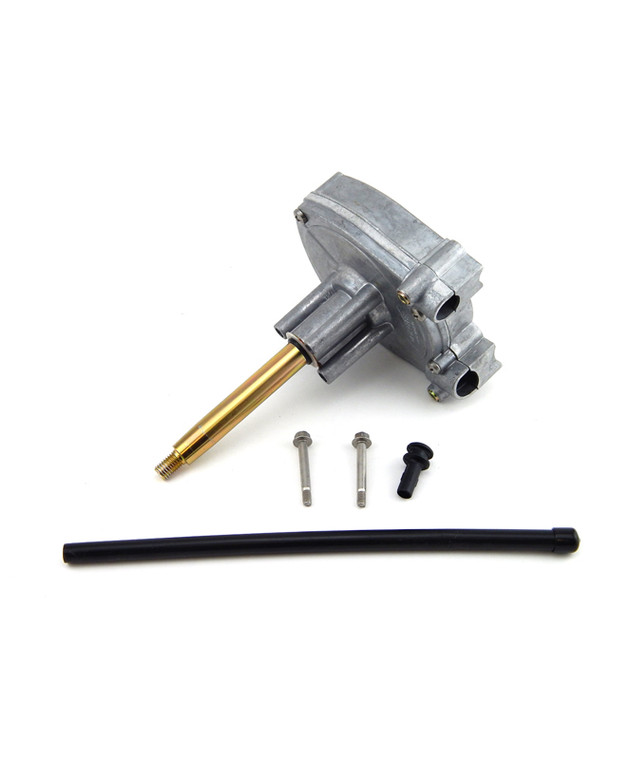

Uflex T71FC Single Cable Rotary Helm
Uflex T71FC Single Cable Rotary Helm.
The T71FC mechanical rotary steering helm is designed to control boats with outboards, inboards, or power assisted sterndrives. The T71FC is a single cable steering helm.
MUST BE USED WITH M66 STEERING CABLES
Features:
Not to be used on boats that exceed speeds of 50 knots (57.5 mph
Fast connect, simple installation
All stainless steel cable output ends
Corrosion resistant materials
Particulary suitable where clearance is limited
Standard 3/4” tapered shaft
Lock-to-lock steering wheel turns: approx. 3.8
Stroke: 9” (228 mm)
Maximum allowable steering wheel diameter: 16” (406 mm)
Minimum steering cable bend radius: 7.9” (200 mm)
Minimal feedback
Compact for mounting
Exceeds EN 28848 safety standards
Exceeds ABYC P17 safety standards
The T71FC mechanical rotary steering helm is designed to control boats with outboards, inboards, or power assisted sterndrives. The T71FC is a single cable steering helm.
MUST BE USED WITH M66 STEERING CABLES
Features:
| Brand | Uflex USA |
|---|---|
| Cross Reference / Specs |
