Yamaha Marine 6DA-W006A-00-00 F150-F200 Outboard 100-Hour Service Kit

Yamaha Marine 6DA-W006A-00-00 F150-F200 Outboard 100-Hour Service Kit.

100-Hour service kit fits F150LCA, F150XCA, LF150XCA, F150XSA, LF150XSA, VF150LA, VF150XA, F175LA, F175XA, F175LCA, F175XCA, LF175XCA, VF175LA, VF175XA, F200LB, F200XB, LF200XB, F200LCA, LF200LCA, F200XCA, LF200XCA, F200XSA and LF200XSA (2.8L) outboard engines.

Each kit includes all the hardware to replace the external anodes, fuel filter and gasket, hardware to swap out the water pump impeller, thermostat, and coordinating gaskets, as well as spark plugs for the outboard. These kits were designed to use every 100 hours or each year—whichever comes first.

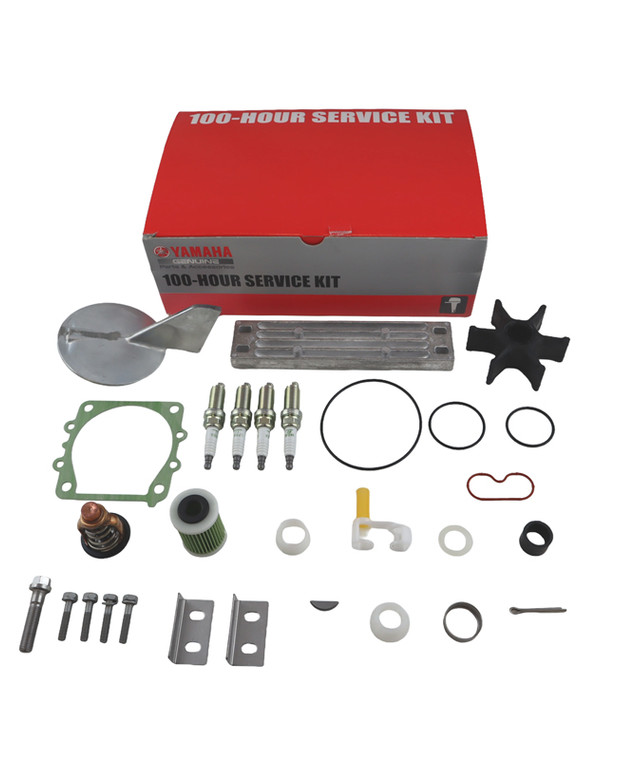

Kit Includes:

(1) - 6AW-45251-00 - Anode

(2) - 6G5-44526-00 - Plate

(4) - 97E95-06530 - Bolt

(1) - 6J9-45371-01 - Trim tab

(1) - 90105-10M00 - Bolt

(1) - 6P3-WS24A-01 - Element, filter

(1) - 6P3-24564-00 - Gasket

(1) - 6CB-24501-01 - Fuel filter

(1) - 6CB-13016-00 - O-ring

(1) - 90280-04M05 - Key, woodruff

(1) - 6E5-44315-A0 - Gasket, water pump

(1) - 6E5-44352-01 - Impeller

(1) - 61A-45538-00 - Spacer 1

(1) - 61A-45527-00 - Collar, drive shaft

(1) - 93210-86M38 - O-ring

(1) - 93210-37M67 - O-ring

(1) - 6E5-44365-01 - Damper, water seal 1

(1) - 6E5-44312-00 - Cover, water pump housing

(1) - 90202-16061 - Washer, plate

(1) - 91490-40030 - Pin, cotter

(1) - 6DA-12411-01 - Thermostat

(4) - 94702-00400 - Spark plug (LFR6A-11)

Genuine OEM Part
