Yamaha Marine 6EK-W006A-00-00 F115 Outboard 100 Hour Service Kit
Yamaha Marine 6EK-W006A-00-00 F115 Outboard 100-Hour Service Kit.
100-Hour service kit fits F115LB, F115XB, LF115XB, VF115LA, VF115XA, F150LB, F150XB AND LF150XB (1.8 - 2.7L) outboard engines.

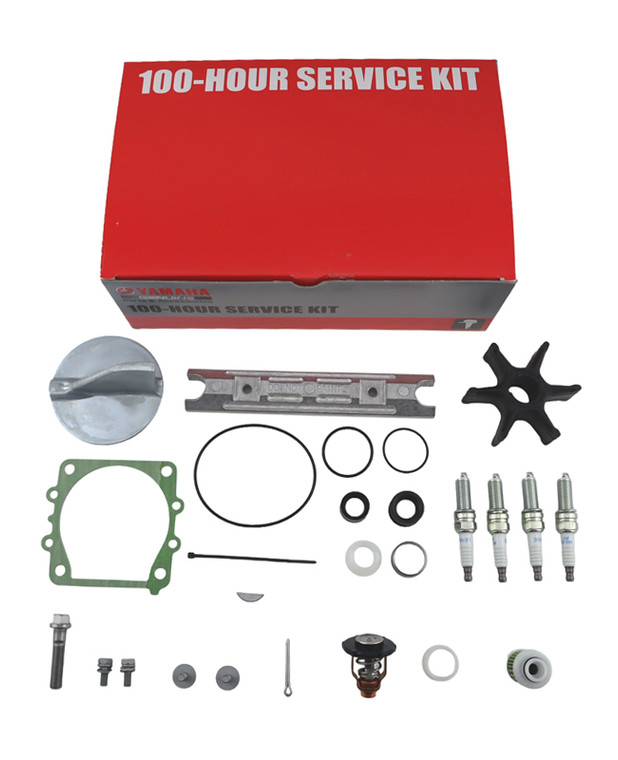

Each kit includes all the hardware to replace the external anodes, fuel filter and gasket, hardware to swap out the water pump impeller, thermostat, and coordinating gaskets, as well as spark plugs for the outboard. These kits were designed to use every 100 hours or each year—whichever comes first.
Kit Includes:
(1) - 6H1-45251-03 - Anode
(2) - 90119-06276 - Bolt
(2) - 97E95-06616 - Bolt
(1) - 6E5-45371-01 - Trim tab
(1) - 90105-10M00 - Bolt
(1) - 6D8-WS24A-00 - Element, filter
(1) - 6D8-24564-00 - Gasket
(1) - 90465-10098 - Clamp
(1) - 61A-45538-00 - Spacer 1
(1) - 61A-45527-00 - Collar, drive shaft
(1) - 93210-86M38 - O-ring
(1) - 93210-37M67 - O-ring
(1) - 6E5-44352-01 - Impeller
(1) - 6E5-44315-A0 - Gasket, water pump
(1) - 90280-04M05 - Key, woodruff
(1) - 6E5-44366-01 - Damper, water seal 2
(1) - 6E5-44365-01 - Damper, water seal 1
(1) - 6E5-44312-00 - Cover, water pump housing
(1) - 91490-40030 - Pin, cotter
(1) - 6EK-12411-00 - Thermostat
(4) - 94702-00437 - Spark plug (LKR6E)
Genuine OEM Part
100-Hour service kit fits F115LB, F115XB, LF115XB, VF115LA, VF115XA, F150LB, F150XB AND LF150XB (1.8 - 2.7L) outboard engines.
Each kit includes all the hardware to replace the external anodes, fuel filter and gasket, hardware to swap out the water pump impeller, thermostat, and coordinating gaskets, as well as spark plugs for the outboard. These kits were designed to use every 100 hours or each year—whichever comes first.
Kit Includes:
| Brand | Yamaha Marine |
|---|---|
| Cross Reference / Specs | USE WITH: |
