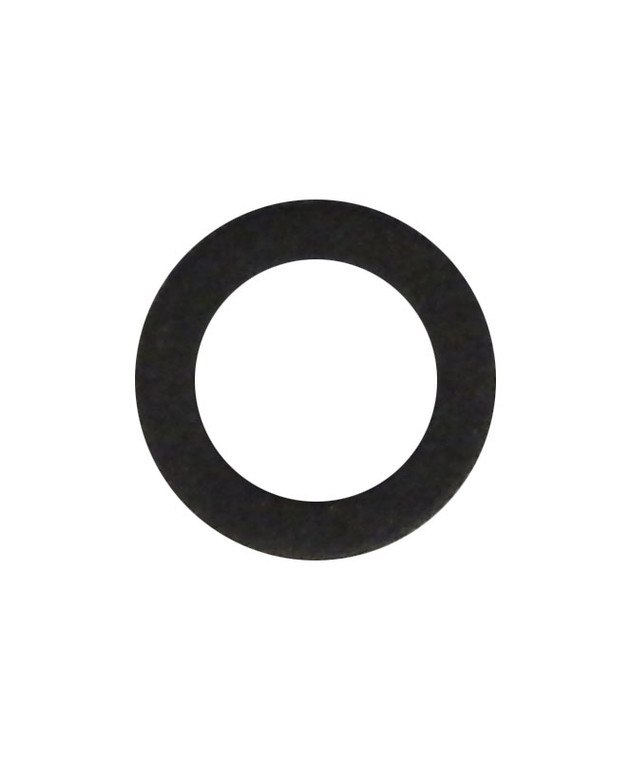

Yamaha Marine 90430-08003-00 Gasket
Yamaha Marine 90430-08003-00 Gasket.
Used on lower unit drain and oil level screws for all Yamaha outboard models
IMPORTANT: These new-type black gaskets have a different installation and torque procedure than the previous type:
Apply clean oil to the screw threads and both gasket surfaces. Install the drain or oil level screw
Tighten just until seated and then turn the screw an additional 45 degrees to achieve the proper torque or tighten to 7 ± 1 Nm (0.7 ± 0.1 m-kgf, 5.2 ± 0.7 lb-ft)
NOTICE: Excessive torque and/or lack of oil on the threads and gasket surfaces could damage the gasket, resulting in an oil leak and/or water entering the lower unit.
Used on lower unit drain and oil level screws for all Yamaha outboard models
IMPORTANT: These new-type black gaskets have a different installation and torque procedure than the previous type:
NOTICE: Excessive torque and/or lack of oil on the threads and gasket surfaces could damage the gasket, resulting in an oil leak and/or water entering the lower unit.
| Brand | Yamaha Marine |
|---|---|
| Cross Reference / Specs | MALLORY MARINE
MERCURY MARINE YAMAHA MARINE SIERRA USE WITH: |
