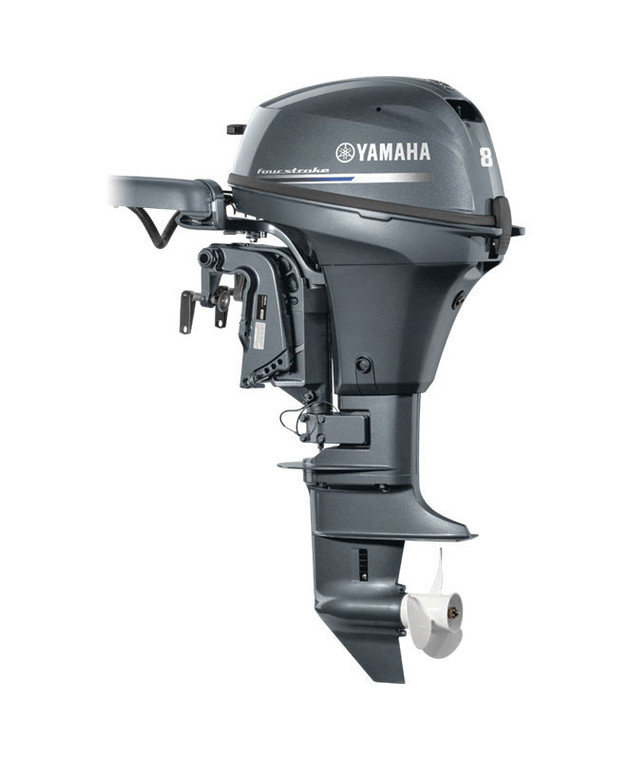

Yamaha Marine F8SMHB Four Stroke 8HP Short Shaft Outboard Engine

Yamaha Marine F8SMHB Four Stroke 8HP Short Shaft Outboard Engine.

Our 212-cc 8-hp portable outboard features 7.5 percent more displacement than its previous design. This SOHC two cylinder outboard delivers a nice balance of power, performance and portability for jon boats and inflatables. Its new, shorter tiller handle makes operation more comfortable, so you can make a whole day of it.

Engine Specifications:

Color: Gray

HP: 8 / 212-cc

Weight: 87 lbs (39 kg )

Full Throttle RPM Range:b5000 ~ 6000

Fuel Induction System: Carb

Recommended Engine Oil: Yamalube 4M

Engine Type: 2 cyl

Displacement: 212cc

Bore x Stroke: 56 x 43mm (2.20 x 1.70 in.)

Prop Shaft Horsepower: 8hp at 5500 rpm

Alternator Output at W.O.T.: 6 Amp

Compression Ratio: 9.4:1

Recommended Fuel: Octane 87

Recommended Fuel Filtration: Yamaha 10-Micron Fuel/Water Separating Filter (external)

C.A.R.B. Rating: 3-Star

Exhaust: Through Propeller

Intake: 4

Ignition: CDI Microcomputer

Spark Plug: BR6HS-10

Starting System: Manual

Lubrication: Wet Sump

Engine Oil Capacity: 0.8L

Recommended Cooling: Thermostatic Control

Ethanol Blend Limit: 10% Maximum

Gear Ratio: 2.08:1

Gear Shift: Forward, Neutral, Reverse

Shaft Length: 15"

Degree of Tilt: 71°

Degree of Trim: -4° through +16°

:Steering: Tiller:

Steering Angle (maximum): 43° from center, either direction

NOW COMPATIBLE WITH SIREN MARINE MONITORING
