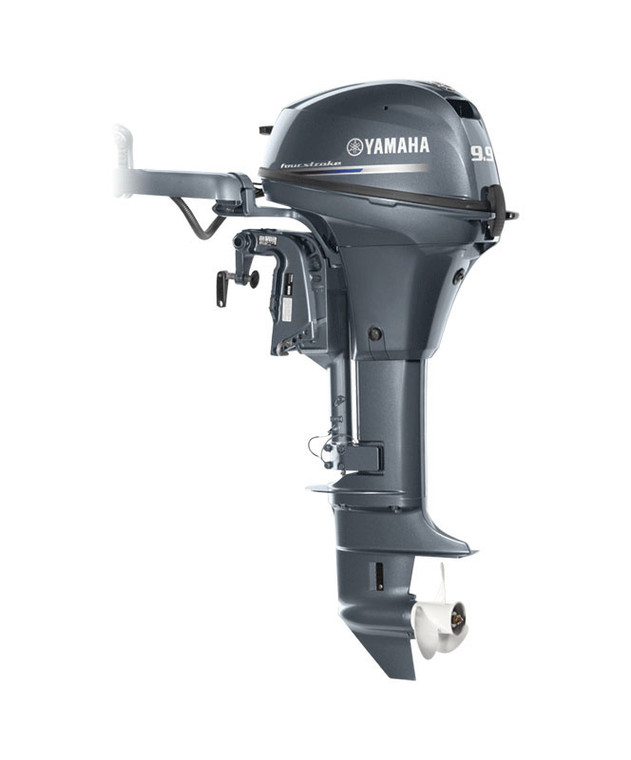

Yamaha Marine F9.9SMHB Four Stroke 9.9HP Short Shaft Outboard Engine

Yamaha Marine F9.9SMHB Four Stroke 9.9HP Short Shaft Outboard Engine.

Our 212-cc 9.9-hp portable is an impressive little outboard with a short tiller handle for increased comfort and the option of manual or electric start. The F9.9 platform is so popular, we also offer it with new pearlescent white styling, or in a high-thrust T9.9 format. The high-thrust model offers the option of a 25-inch shaft and a V MAX SHO® sport cowling when used as a kicker on a multi-species boat.

Engine Specifications:

Color: Gray

HP: 9.9 / 212-cc

Weight: 87 lbs (39 kg )

Full Throttle RPM Range:5000 ~ 6000

Fuel Induction System: Carb

Recommended Engine Oil: Yamalube 4M

Engine Type: 2 cyl

Displacement: 212cc

Bore x Stroke: 56 x 43mm (2.20 x 1.70 in.)

Prop Shaft Horsepower: 9.9hp at 5500 rpm

Alternator Output at W.O.T.: 6 Amp

Compression Ratio: 9.4:1

Recommended Fuel: Octane 87

Recommended Fuel Filtration: Yamaha 10-Micron Fuel/Water Separating Filter (external)

C.A.R.B. Rating: 3-Star

Exhaust: Through Propeller

Intake: 4

Ignition: CDI Microcomputer

Spark Plug: BR6HS-10

Starting System: Electric & Manual

Lubrication: Wet Sump

Engine Oil Capacity: 0.8L

Recommended Cooling: Thermostatic Control

Ethanol Blend Limit: 10% Maximum

Gear Ratio: 2.08:1

Gear Shift: Forward, Neutral, Reverse

Shaft Length: 15"

Degree of Tilt: 71°

Degree of Trim: -4° through +16°

:Steering: Tiller:

Steering Angle (maximum): 43° from center, either direction

NOW COMPATIBLE WITH SIREN MARINE MONITORING
