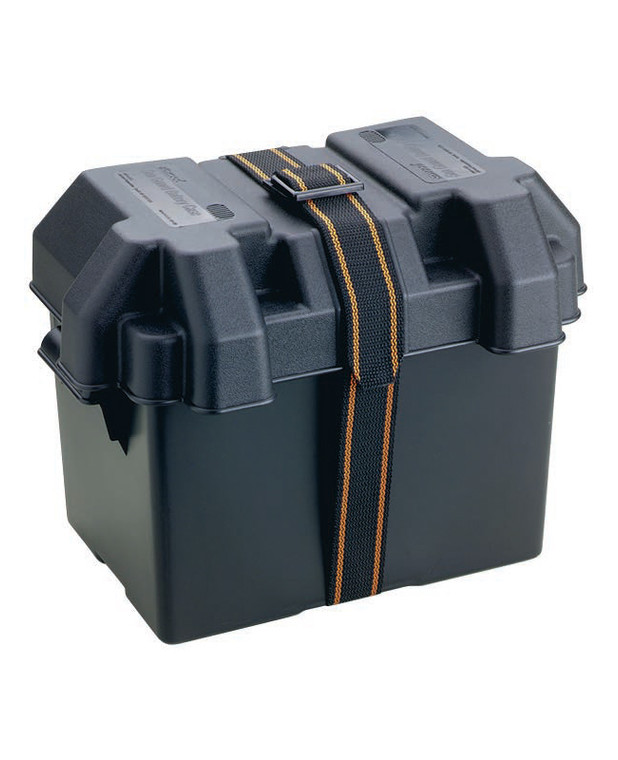

Attwood Marine 9065-1 PowerGuard 24 Battery Box
Attwood Marine 9065-1 PowerGuard 24 Battery Box
Meet ABYC standard E-10 and U.S. Coast Guard Specification Number 183.420 as an OEM-installed battery hold-down system. Polypropylene construction for total acid resistance. Hold-down straps resist 350 lbs. of force, nearly four times the USCG requirement. Drop tested in temperatures ranging from -20°F to +120°F. Mounting hardware included.
Vented and non-vented battery box for standard size, Series 24 batteries (8-3/16 inch maximum battery block height, 10-1/8 inch maximum battery height with terminals).
Features:
Four cable openings, enlarged to .55 inch-diameter
Larger handles with rolled edges
Instructions molded inside cover
Battery Series: 24/24M/24F
Dimensions with Lid Installed: Inside Dim.(L x W x H): 10-5/8" x 7" x 10-1/8"
Outside Dim.(L x W x H): 14" x 9-5/8" x 10-5/8"
Strap Length: 40"
Color/Style: Black, vented
Meet ABYC standard E-10 and U.S. Coast Guard Specification Number 183.420 as an OEM-installed battery hold-down system. Polypropylene construction for total acid resistance. Hold-down straps resist 350 lbs. of force, nearly four times the USCG requirement. Drop tested in temperatures ranging from -20°F to +120°F. Mounting hardware included.
Vented and non-vented battery box for standard size, Series 24 batteries (8-3/16 inch maximum battery block height, 10-1/8 inch maximum battery height with terminals).
Features:
Brand | Attwood Marine |
---|---|
Cross Reference / Specs |
